LS33600 STS
ActiveBattery Store, Inc.

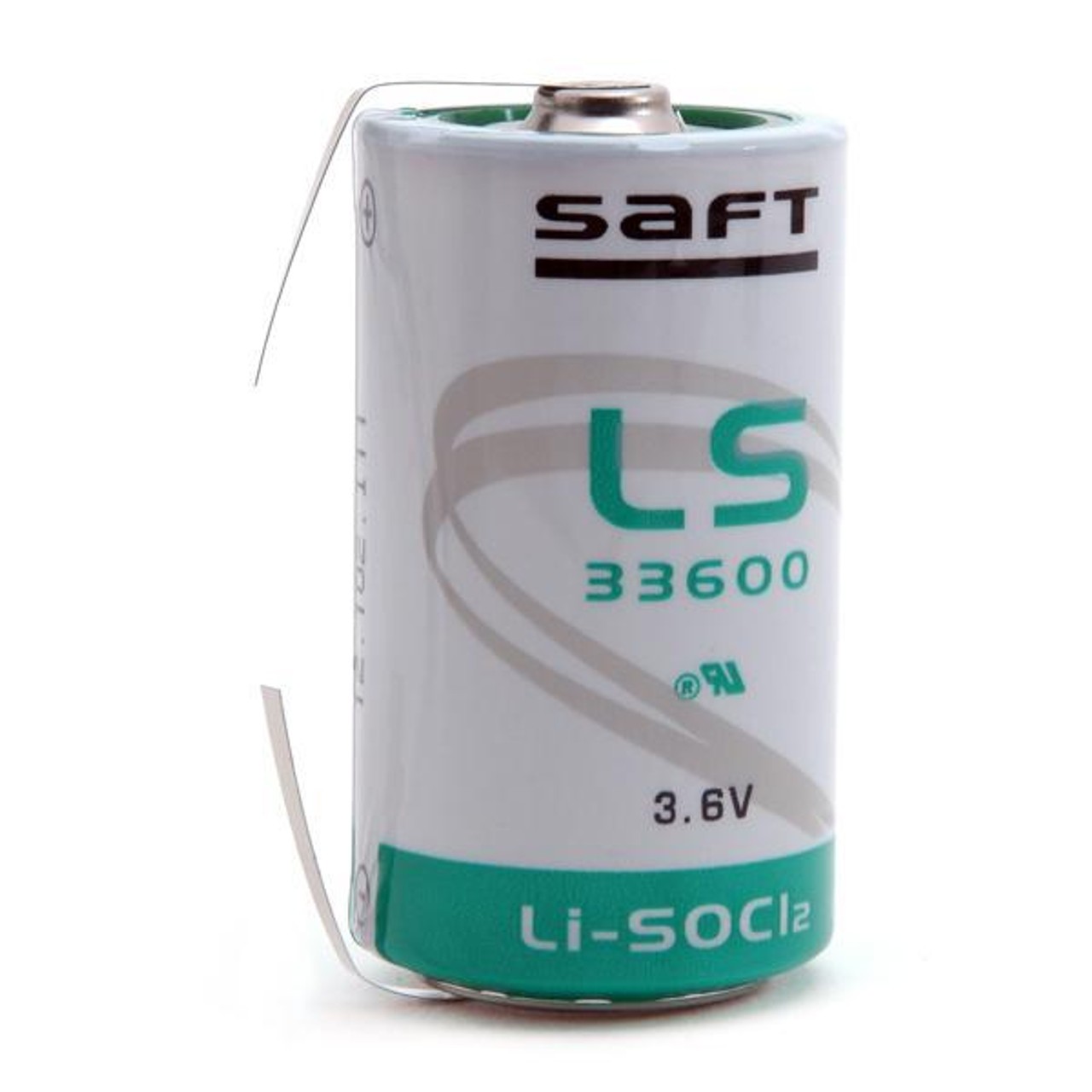

BATTERY LITHIUM 3.6V D
LS33600 STS
ActiveBattery Store, Inc.
BATTERY LITHIUM 3.6V D
Description
General part information
LS33600 STS
D Lithium Thionyl Chloride 3.6 V Battery Non-Rechargeable (Primary)
Technical Specifications
Parameters and characteristics for this part
| Specification | LS33600 STS |
|---|---|
| Battery Cell Size | D |
| Battery Chemistry | Lithium Thionyl Chloride |
| Capacity (Charge) | 17 Ah |
| Discharge Rate (Current) | 250 mA |
| Shipping Info | Due to restrictions, only ground shipment is allowed. |
| Size / Dimension Diameter | 1.3 in |
| Size / Dimension Height | 2.35 in |
| Storage/Refrigeration Temperature | 86 °F |
| Termination Style | Button Top (Extending) |
| Voltage - Rated | 3.6 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
