C0PPG-4018M
ActiveCW Industries
DIP CABLE - CDP40G/AE40M/CDP40G
Deep-Dive with AI
DocumentsRibbon Cable Assembly Length Guide
Technical Specifications
Parameters and characteristics for this part
| Specification | C0PPG-4018M |
|---|---|
| Cable Termination | IDC |
| Color | Ribbon, Multiple |
| Connector Type | DIP to DIP, Reversed |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Length [x] | 457.2 mm |
| Length [x] | 1.5 ft |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
| Usage | Board In, Socket (0.6") |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.14 | |
| 10 | $ 13.99 | |||
| 25 | $ 13.26 | |||
| 50 | $ 13.07 | |||
| 100 | $ 11.53 | |||
| 250 | $ 10.76 | |||
| 500 | $ 10.53 | |||
| 1000 | $ 9.99 | |||
Description
General part information
C0PPG-4 Series

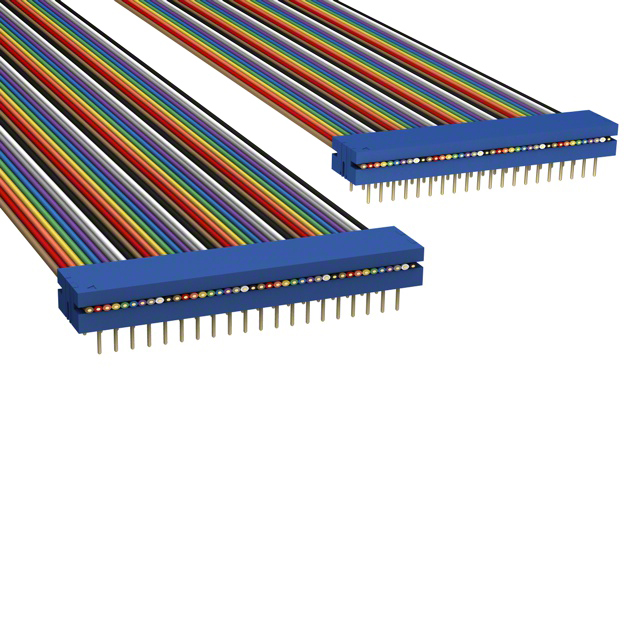

40 Position Cable Assembly Rectangular DIP to DIP, Reversed 1.50' (457.20mm)
