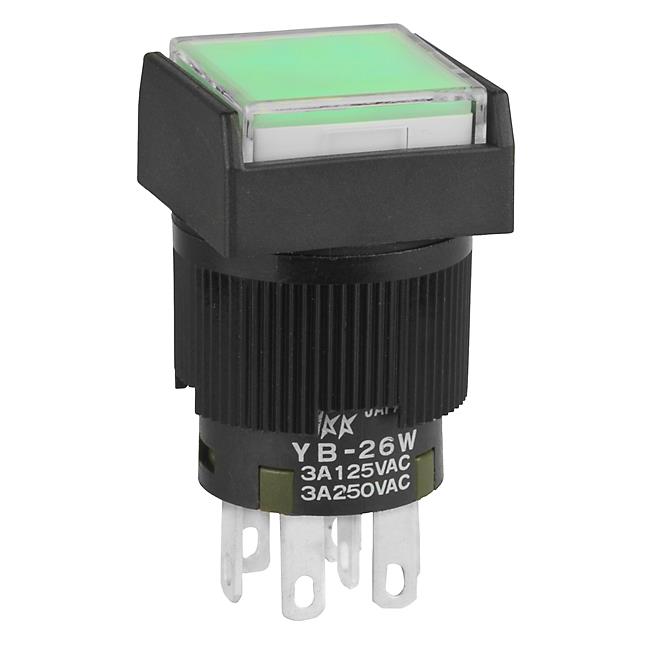

YB26WSKW01-5F-JF

Active

NKK SWITCHES

SWITCH PUSHBUTTON DPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

YB26WSKW01-5F-JF

Active

NKK SWITCHES

SWITCH PUSHBUTTON DPDT 3A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 26.20
		10	$ 22.61
		25	$ 21.31
		40	$ 20.68
		80	$ 19.77
		230	$ 18.47
		440	$ 17.71
Newark	Each	1	$ 44.43
		5	$ 39.62
		10	$ 38.27
		25	$ 36.16
		50	$ 33.66
		100	$ 29.81
		250	$ 26.73
