1222723
ActiveSICK, Inc.

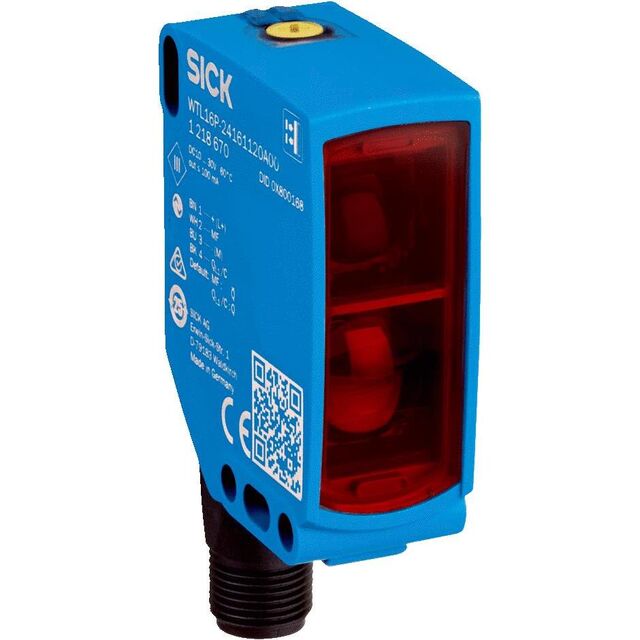

SMALL PHOTOELECTRIC SENSORS, W16
1222723
ActiveSICK, Inc.
SMALL PHOTOELECTRIC SENSORS, W16
Description
General part information
1222723
Proximity Optical Sensor 11.811" (300mm) Push-Pull, NPN/PNP - Dark-ON/Light-ON
Technical Specifications
Parameters and characteristics for this part
| Specification | 1222723 |
|---|---|
| Adjustment Type | Teaching Method |
| Connection Method | Connector, M12 |
| Ingress Protection | IP66 |
| Light Source | Red |
| Light Source Wavelength (Red) | 635 nm |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -40 °C |
| Output Configuration | PNP - Dark-ON, Push-Pull, Light-ON, NPN |
| Response Time | 500 µs |
| Sensing Distance | 11.811 " |
| Sensing Method | Proximity |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
