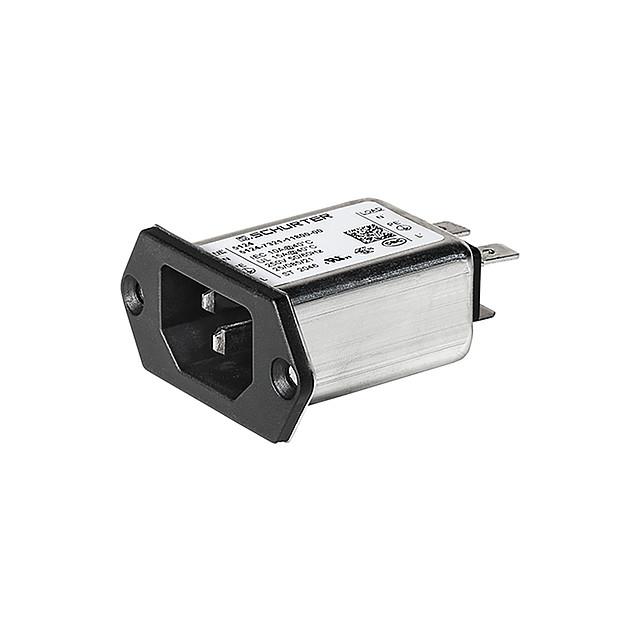

3-130-936
ActiveSCHURTER Inc.
5124 CONNECTOR FILTER C14 2A M5
3-130-936
ActiveSCHURTER Inc.
5124 CONNECTOR FILTER C14 2A M5
Description
General part information
3-130-936
Single Phase EMC/EMI Line Filter 2 A 250V 50/60Hz Single Stage IEC 320-C14, Quick Connect
Technical Specifications
Parameters and characteristics for this part
| Specification | 3-130-936 |
|---|---|
| Applications | Medical |
| Approval Agency | cURus, ENEC, CQC |
| Configuration | Single Stage |
| Current | 2 A |
| Filter Type | Single Phase |
| Frequency - Operating | 60Hz, 50Hz |
| Frequency - Operating (Max) | 60 Hz |
| Frequency - Operating (Min) | 50 Hz |
| Inductance | 33 mH |
| Mounting Type | Panel Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Termination Style | Quick Connect, IEC 320-C14 |
| Voltage - Rated AC | 250 V |
