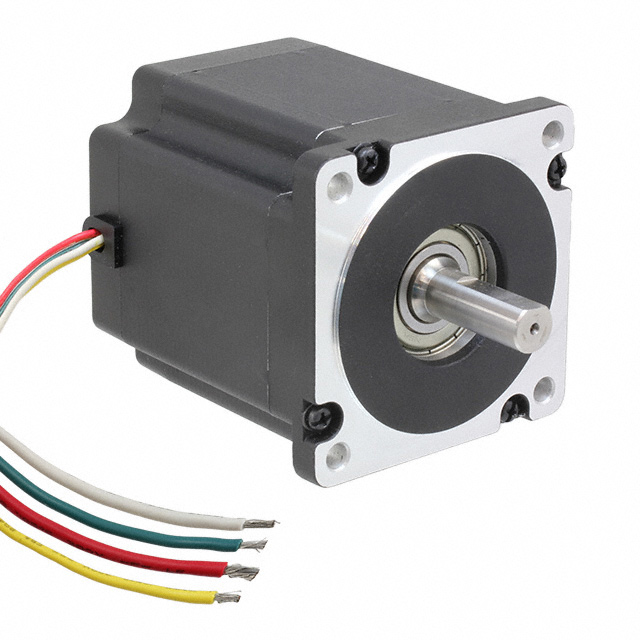

QSH8618-96-55-700
ActiveAnalog Devices Inc./Maxim Integrated
STEP MOTOR HYBRID BIPOLAR 2.56V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
QSH8618-96-55-700
ActiveAnalog Devices Inc./Maxim Integrated
STEP MOTOR HYBRID BIPOLAR 2.56V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | QSH8618-96-55-700 |
|---|---|
| Approval Agency | CE |
| Coil Resistance | 0.45 Ohms |
| Coil Type | Bipolar |
| Current Rating (Amps) | 5.5 Amps |
| Diameter - Shaft [diameter] | 12.7 mm |
| Diameter - Shaft [diameter] | 0.5 in |
| Features | Flatted Shaft |
| Length - Shaft and Bearing [x] | 33.27 mm |
| Length - Shaft and Bearing [x] | 1.31 in |
| Mounting Hole Spacing | 2.74 in |
| Mounting Hole Spacing | 69.6 mm |
| NEMA Frame Size | 34 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -20 C |
| Rotor Inertia | 2700 gcm² |
| Size / Dimension [x] | 3.38 in |
| Size / Dimension [x] | 85.85 mm |
| Size / Dimension [y] | 85.85 mm |
| Size / Dimension [y] | 3.38 " |
| Step Angle | 1.8 ° |
| Steps per Revolution | 200 |
| Termination Style | Wire Leads |
| Torque - Holding (oz-in / mNm) | 991.28 oz-in |
| Torque - Holding (oz-in / mNm) | 7000 mNm |
| Type | Hybrid |
| Voltage - Rated | 2.56 VDC |
| Weight | 6.2 lbs |
| Weight | 2.8 kg |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 287.98 | |
QSH8618 Series
STEP MOTOR HYBRID BIPOLAR 2.56V
| Part | Approval Agency | Voltage - Rated | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Mounting Hole Spacing | Mounting Hole Spacing | Operating Temperature [Max] | Operating Temperature [Min] | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Weight | Weight | Step Angle | Features | Termination Style | NEMA Frame Size | Current Rating (Amps) | Coil Type | Type | Coil Resistance | Torque - Holding (oz-in / mNm) | Torque - Holding (oz-in / mNm) | Steps per Revolution | Rotor Inertia | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated QSH8618-96-55-700 | CE | 2.56 VDC | 3.38 in | 85.85 mm | 3.38 " | 85.85 mm | 2.74 in | 69.6 mm | 50 °C | -20 C | 33.27 mm | 1.31 in | 6.2 lbs | 2.8 kg | 1.8 ° | Flatted Shaft | Wire Leads | 34 | 5.5 Amps | Bipolar | Hybrid | 0.45 Ohms | 991.28 oz-in | 7000 mNm | 200 | 2700 gcm² | 12.7 mm | 0.5 in |
Description
General part information
QSH8618 Series
Bipolar Stepper Motor Hybrid Frame Size 34 200.0 Step 5.5 A 2.56VDC
