194-3MS
ActiveCTS Electrocomponents
SWITCH PIANO DIP SPST 0.05A 24V
194-3MS
ActiveCTS Electrocomponents
SWITCH PIANO DIP SPST 0.05A 24V
Description
General part information
194-3MS

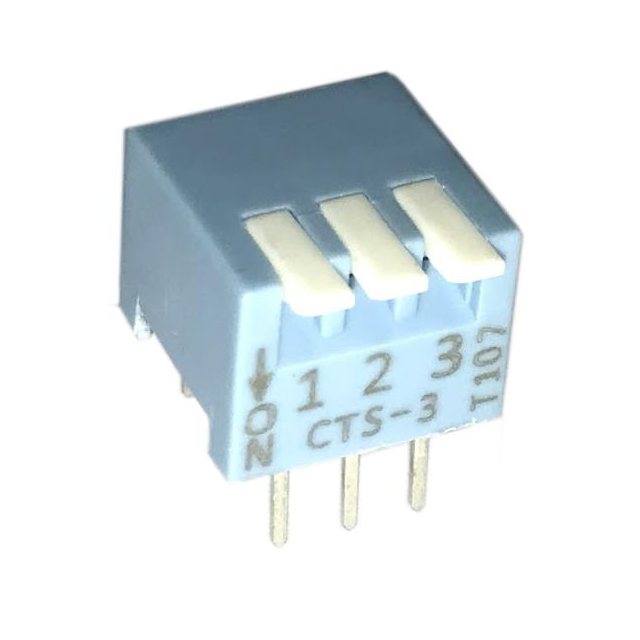

Dip Switch SPST 3 Position Through Hole, Right Angle Piano Actuator 50mA 24VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | 194-3MS |
|---|---|
| Actuator Level | Raised |
| Actuator Type | Piano |
| Body Material | Plastic |
| Circuit | SPST |
| Contact Finish | Gold |
| Current Rating | 50 mA |
| Electrical Life (Cycles) | 7000 |
| Features | Epoxy Sealed Terminals |
| Height Above Board | 0.311 in |
| Length | 0.386 in |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 3 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.1 in |
| Pitch Type | Full |
| Termination Style | PC Pin |
| Voltage Rating | 24 V |
| Washable | No |
