8468MN 008100

Active

Belden Inc.

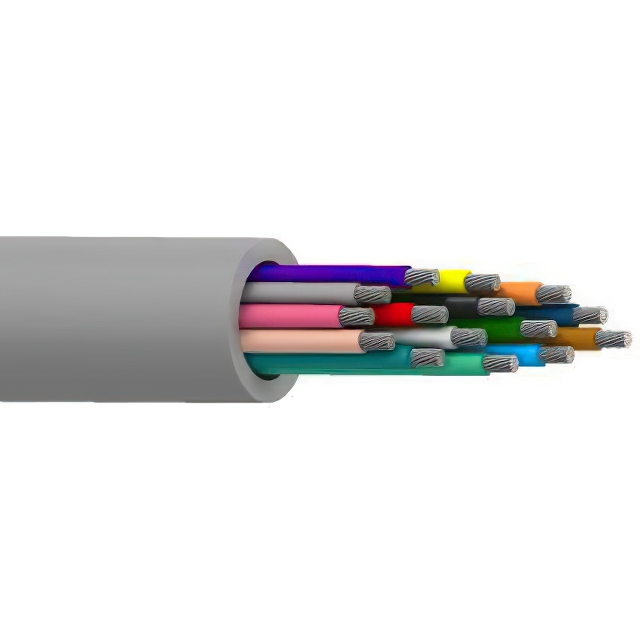

CABLE 15COND 18AWG GRAY

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 15COND 18AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	8468MN 008100

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	41 strands
Conductor Strand [custom]	34 AWG
Jacket (Insulation) Diameter [diameter]	8.81 mm
Jacket (Insulation) Diameter [diameter]	0.347 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.406 mm
Jacket (Insulation) Thickness	0.016 in
Jacket Color	Gray
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	15
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Audio, Instrumentation, Control
Wire Gauge	18 AWG

Part	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Conductors	Usage	Cable Type	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Wire Gauge	Jacket (Insulation) Material	Length [x]	Length [x]	Ratings	Voltage	Length	Length
Belden Inc. 8468MN 008100	Polypropylene (PP)	8.81 mm	0.347 in	-20 C	80 C	15	Audio Control Instrumentation	Multi-Conductor	Copper Tinned	0.406 mm	0.016 in	41 strands	34 AWG	Gray	18 AWG	Poly-Vinyl Chloride (PVC)	30.5 m	100 ft
Belden Inc. 8468MN 0041000	Polypropylene (PP)	8.81 mm	0.347 in	-20 C	80 C	15	Audio Control Instrumentation	Multi-Conductor	Copper Tinned	0.406 mm	0.016 in	41 strands	34 AWG	Yellow	18 AWG	Poly-Vinyl Chloride (PVC)			UL Style 2937	300 V	1000 ft	304.8 m
Belden Inc. 8468MN 0081000	Polypropylene (PP)	8.81 mm	0.347 in	-20 C	80 C	15	Audio Control Instrumentation	Multi-Conductor	Copper Tinned	0.406 mm	0.016 in	41 strands	34 AWG	Gray	18 AWG	Poly-Vinyl Chloride (PVC)			UL Style 2937	300 V	1000 ft	304.8 m
Belden Inc. 8468MN 006100	Polypropylene (PP)	8.81 mm	0.347 in	-20 C	80 C	15	Audio Control Instrumentation	Multi-Conductor	Copper Tinned	0.406 mm	0.016 in	41 strands	34 AWG	Blue	18 AWG	Poly-Vinyl Chloride (PVC)	30.5 m	100 ft	UL Style 2937	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 Conductor Multi-Conductor Cable Gray 18 AWG 100.0' (30.5m)
