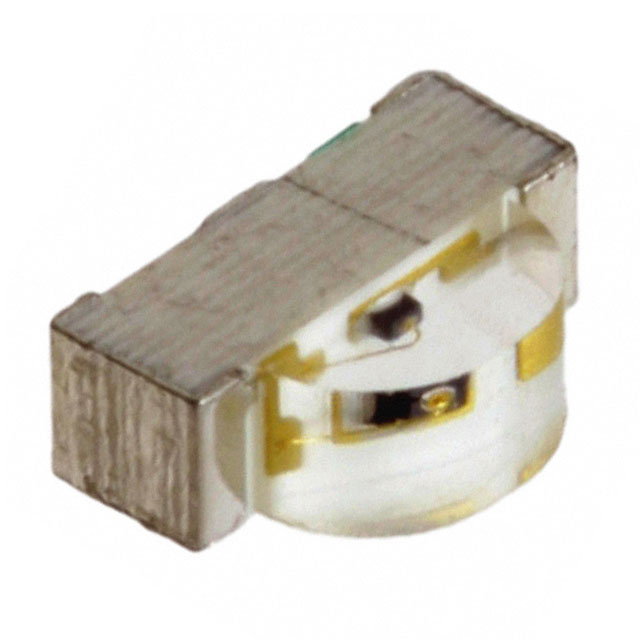

VSMB10940

Active

Vishay Semiconductor Opto Division

EMITTER IR 940NM 65MA SMD

Search across all available documentation for this part.

Active

Vishay Semiconductor Opto Division

EMITTER IR 940NM 65MA SMD

Technical Specifications

Parameters and characteristics for this part

Specification	VSMB10940

Current - DC Forward (If) (Max)	65 mA
Mounting Type	Surface Mount, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Side View
Package / Case	2-SMD, No Lead
Radiant Intensity (Ie) Min @ If [Min]	1 mW/sr
Type	Infrared (IR)
Viewing Angle	150 °
Voltage - Forward (Vf) (Typ)	1.3 V
Wavelength	940 nm

EMITTER IR 940NM 65MA SMD

Part	Type	Radiant Intensity (Ie) Min @ If [Min]	Voltage - Forward (Vf) (Typ)	Wavelength	Viewing Angle	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Current - DC Forward (If) (Max)	Mounting Type
Vishay Semiconductor Opto Division VSMB10940	Infrared (IR)	1 mW/sr	1.3 V	940 nm	150 °	2-SMD, No Lead	85 °C	-40 °C	Side View	65 mA	Surface Mount, Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Infrared (IR) Emitter 940nm 1.3V 65mA 1mW/sr @ 20mA 150° 2-SMD, No Lead
