2891411
ObsoletePhoenix Contact
NETWORK SWITCH-UNMANAGED 8 PORT
2891411
ObsoletePhoenix Contact
NETWORK SWITCH-UNMANAGED 8 PORT
Description
General part information
2891411

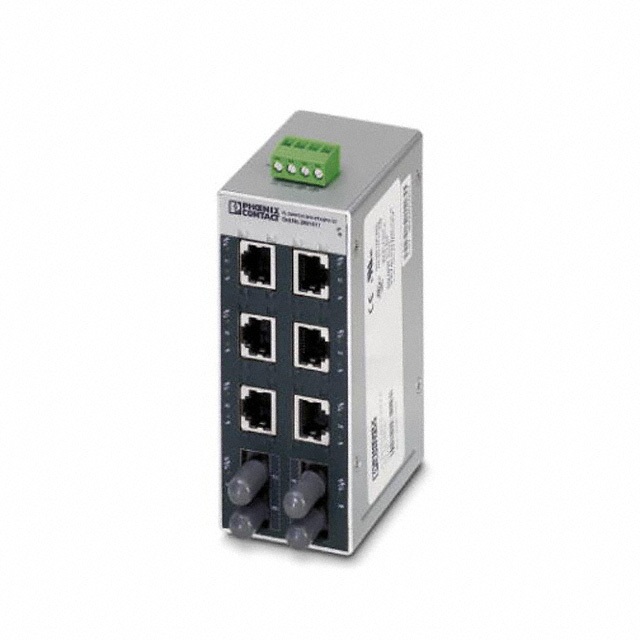

Network Switch - Unmanaged 8 Ports IP20
Technical Specifications
Parameters and characteristics for this part
| Specification | 2891411 |
|---|---|
| Configuration | Fixed |
| Connector Type | ST, RJ45 |
| Copper Ports | 6 |
| Copper Type | 10/100 |
| Fiber Mode | Multimode |
| Fiber Ports | 2 |
| Fiber Type | 100BASE-FX |
| Ingress Protection | IP20 |
| Mounting Type | DIN Rail |
| Number of Ports | 8 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | 0 °C |
| Type | Switch - Unmanaged |
| Voltage - Input (DC) Maximum | 30.2 VDC |
| Voltage - Input (DC) Minimum | 9 VDC |
