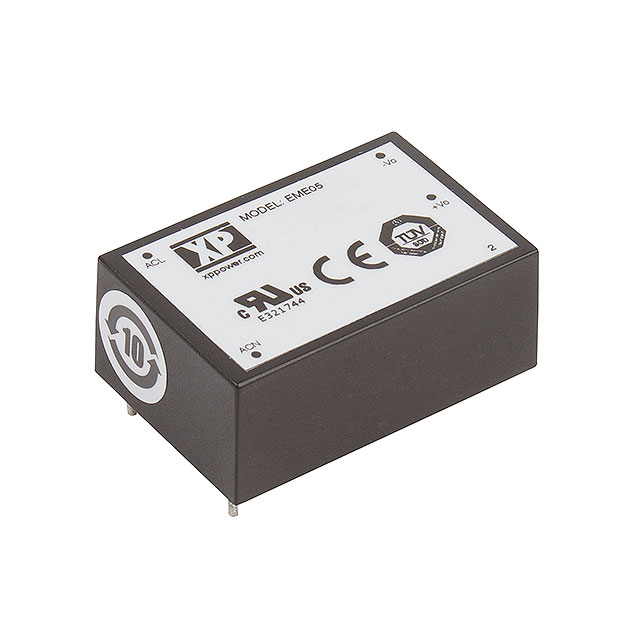

EME05US24
ActiveXP POWER
AC/DC CONVERTER 24V 5W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EME05US24
ActiveXP POWER
AC/DC CONVERTER 24V 5W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EME05US24 |
|---|---|
| Applications | Medical |
| Approval Agency | cURus, CE, TUV |
| Current - Output (Max) [Max] | 208 mA |
| Efficiency | 80 % |
| Features | Universal Input |
| Line Regulation | 0.5 % |
| Load Regulation | 1 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 4-DIP Module |
| Power (Watts) | 5 W |
| Size / Dimension [x] | 38.1 mm |
| Size / Dimension [x] | 1.5 in |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 15.2 mm |
| Size / Dimension [z] | 0.6 " |
| Standard Number | 60601-1 |
| Type | Enclosed |
| Voltage - Output 1 | 24 V |
| Weight | 24.04 g |
| Weight | 0.053 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 23.41 | |
| 5 | $ 22.71 | |||
| 10 | $ 22.01 | |||
| 25 | $ 21.07 | |||
| 100 | $ 19.66 | |||
Description
General part information
EME05US24
Enclosed AC DC Converters 1 Output 24V 208mA 85 ~ 264 VAC Input
