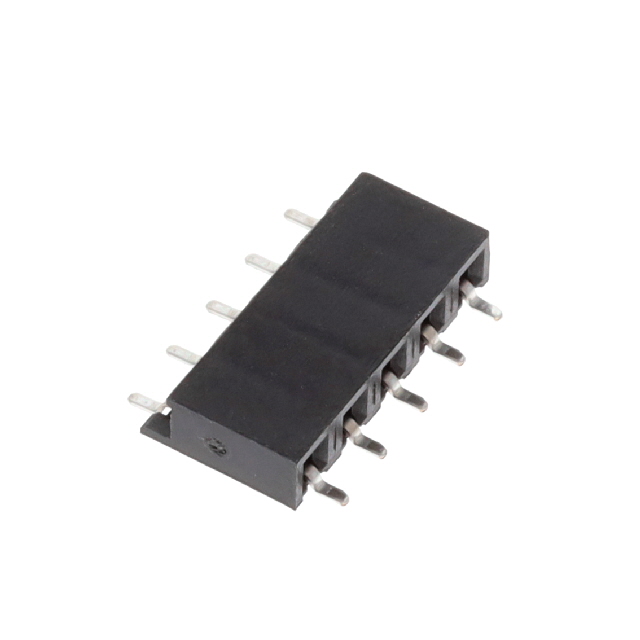

10131931-105ULF
ActiveAmphenol ICC (FCI)
CONN RCPT 5P 0.079 GOLD SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
10131931-105ULF
ActiveAmphenol ICC (FCI)
CONN RCPT 5P 0.079 GOLD SMD R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10131931-105ULF |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Finish Thickness - Post | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Current Rating (Amps) | 2 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.079 in |
| Insulation Height | 2 mm |
| Insulation Material | Nylon, Polyamide (PA), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Termination | Solder |
| Voltage Rating | 200 V |
10131931 Series
| Part | Contact Finish - Mating | Contact Material | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Shape | Current Rating (Amps) | Material Flammability Rating | Number of Positions Loaded | Number of Positions | Connector Type | Voltage Rating | Insulation Material | Termination | Contact Finish - Post | Number of Rows | Fastening Type | Insulation Height | Insulation Height | Pitch - Mating [x] | Pitch - Mating [x] | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color | Contact Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | Gold | Copper Alloy | Surface Mount Right Angle | 15 µin | 0.38 µm | Square | 2 A | UL94 V-0 | All | 13 | Receptacle | 200 V | Glass Filled Nylon Polyamide (PA) | Solder | Tin | 1 | Push-Pull | 0.079 in | 2 mm | 0.079 in | 2 mm | 2.54 µm | 100 µin | -55 °C | 125 °C | Black | Female Socket | |
Amphenol ICC (FCI) | Copper Alloy | Surface Mount Right Angle | 100 çin | 2.54 çm | Square | 2 A | UL94 V-0 | All | 11 | Receptacle | 200 V | Glass Filled Nylon Polyamide (PA) | Solder | Tin | 1 | Push-Pull | 0.079 in | 2 mm | 0.079 in | 2 mm | 2.54 µm | 100 µin | -55 °C | 125 °C | Black | Female Socket | ||
Amphenol ICC (FCI) | Copper Alloy | Surface Mount Right Angle | 100 çin | 2.54 çm | Square | 2 A | UL94 V-0 | All | Receptacle | 200 V | Glass Filled Nylon Polyamide (PA) | Solder | Tin | 1 | Push-Pull | 0.079 in | 2 mm | 0.079 in | 2 mm | 2.54 µm | 100 µin | -55 °C | 125 °C | Black | Female Socket | |||
Amphenol ICC (FCI) | Gold | Copper Alloy | Surface Mount Right Angle | 8 Áin | 0.203 Ám | Square | 2 A | UL94 V-0 | All | 14 | Receptacle | 200 V | Glass Filled Nylon Polyamide (PA) | Solder | Tin | 1 | Push-Pull | 0.079 in | 2 mm | 0.079 in | 2 mm | 2.54 µm | 100 µin | -55 °C | 125 °C | Black | Female Socket | |
Amphenol ICC (FCI) | Gold | Copper Alloy | Surface Mount Right Angle | 8 Áin | 0.203 Ám | Square | 2 A | UL94 V-0 | All | Receptacle | 200 V | Glass Filled Nylon Polyamide (PA) | Solder | Tin | 1 | Push-Pull | 0.079 in | 2 mm | 0.079 in | 2 mm | 2.54 µm | 100 µin | -55 °C | 125 °C | Black | Female Socket | ||
Amphenol ICC (FCI) | Copper Alloy | Surface Mount Right Angle | 100 çin | 2.54 çm | Square | 2 A | UL94 V-0 | All | 15 | Receptacle | 200 V | Glass Filled Nylon Polyamide (PA) | Solder | Tin | 1 | Push-Pull | 0.079 in | 2 mm | 0.079 in | 2 mm | 2.54 µm | 100 µin | -55 °C | 125 °C | Black | Female Socket | ||
Amphenol ICC (FCI) | Gold | Copper Alloy | Surface Mount Right Angle | 8 Áin | 0.203 Ám | Square | 2 A | UL94 V-0 | All | 4 | Receptacle | 200 V | Glass Filled Nylon Polyamide (PA) | Solder | Tin | 1 | Push-Pull | 0.079 in | 2 mm | 0.079 in | 2 mm | 2.54 µm | 100 µin | -55 °C | 125 °C | Black | Female Socket | Pick and Place |
Amphenol ICC (FCI) | Gold | Copper Alloy | Surface Mount Right Angle | 8 Áin | 0.203 Ám | Square | 2 A | UL94 V-0 | All | 12 | Receptacle | 200 V | Glass Filled Nylon Polyamide (PA) | Solder | Tin | 1 | Push-Pull | 0.079 in | 2 mm | 0.079 in | 2 mm | 2.54 µm | 100 µin | -55 °C | 125 °C | Black | Female Socket | |
Amphenol ICC (FCI) | Gold | Copper Alloy | Surface Mount Right Angle | 30 Áin | 0.76 Ám | Square | 2 A | UL94 V-0 | All | Receptacle | 200 V | Glass Filled Nylon Polyamide (PA) | Solder | Tin | 1 | Push-Pull | 0.079 in | 2 mm | 0.079 in | 2 mm | 2.54 µm | 100 µin | -55 °C | 125 °C | Black | Female Socket | ||
Amphenol ICC (FCI) | Gold | Copper Alloy | Surface Mount Right Angle | 15 µin | 0.38 µm | Square | 2 A | UL94 V-0 | All | 2 | Receptacle | 200 V | Glass Filled Nylon Polyamide (PA) | Solder | Tin | 1 | Push-Pull | 0.079 in | 2 mm | 0.079 in | 2 mm | 2.54 µm | 100 µin | -55 °C | 125 °C | Black | Female Socket |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
10131931 Series
5 Position Receptacle Connector 0.079" (2.00mm) Surface Mount, Right Angle Gold
