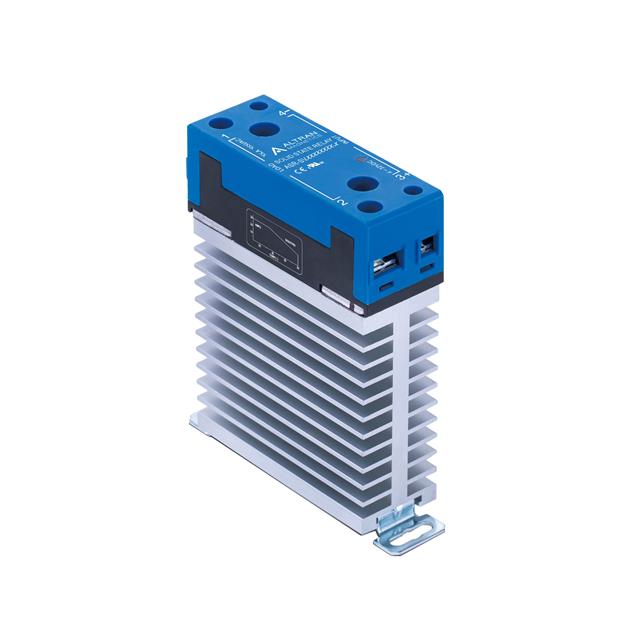

ASR-SV240D20RW-L

Active

Altran Magnetics, LLC

SSR RELAY SPST-NO 20A 24-280V

Search across all available documentation for this part.

Active

Altran Magnetics, LLC

SSR RELAY SPST-NO 20A 24-280V

Technical Specifications

Parameters and characteristics commom to parts in this series

SSR RELAY SPST-NO 30A 24-280V

Part	Mounting Type	Voltage - Load [Min]	Voltage - Load [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Output Type	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Approval Agency	Load Current	Termination Style
Altran Magnetics, LLC ASR-SV240D30RW-L	DIN Rail	24 V	280 V	32 V	4 V	AC	-30 ░C	80 C	Module	CE, cURus	30 A	Screw Terminal
Altran Magnetics, LLC ASR-SV240D40ZW-L	DIN Rail	24 V	280 V	32 V	4 V	AC, Zero Cross	-30 ░C	80 C	Module	CE, cURus	40 A	Screw Terminal
Altran Magnetics, LLC ASR-SV240A20RY-L	DIN Rail	24 V	280 V	280 VAC/DC	90 VAC	AC	-30 ░C	80 C	Module	CE, cURus	20 A	Screw Terminal
Altran Magnetics, LLC ASR-SV240A40RY-L	DIN Rail	24 V	280 V	280 VAC/DC	90 VAC	AC	-30 ░C	80 C	Module	CE, cURus	40 A	Screw Terminal
Altran Magnetics, LLC ASR-SV240A30ZY-L	DIN Rail	24 V	280 V	280 VAC/DC	90 VAC	AC, Zero Cross	-30 ░C	80 C	Module	CE, cURus	30 A	Screw Terminal
Altran Magnetics, LLC ASR-SV240D20RW-L	DIN Rail	24 V	280 V	32 V	4 V	AC	-30 ░C	80 C	Module	CE, cURus	20 A	Screw Terminal
Altran Magnetics, LLC ASR-SV240A20ZY-LM	DIN Rail	24 V	280 V	280 VAC/DC	90 VAC	AC, Zero Cross	-30 ░C	80 C	Module	CE, cURus	20 A	Screw Terminal
Altran Magnetics, LLC ASR-SV240D20ZW-L	DIN Rail	24 V	280 V	32 V	4 V	AC, Zero Cross	-30 ░C	80 C	Module	CE, cURus	20 A	Screw Terminal
Altran Magnetics, LLC ASR-SV240D10ZW-LM	DIN Rail	24 V	280 V	32 V	4 V	AC, Zero Cross	-30 ░C	80 C	Module	CE, cURus	10 A	Screw Terminal
Altran Magnetics, LLC ASR-SV240D10ZW-L	DIN Rail	24 V	280 V	32 V	4 V	AC, Zero Cross	-30 ░C	80 C	Module	CE, cURus	10 A	Screw Terminal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solid State SPST-NO (1 Form A) Module
