7-969484-2
ActiveTE Connectivity AMP Connectors

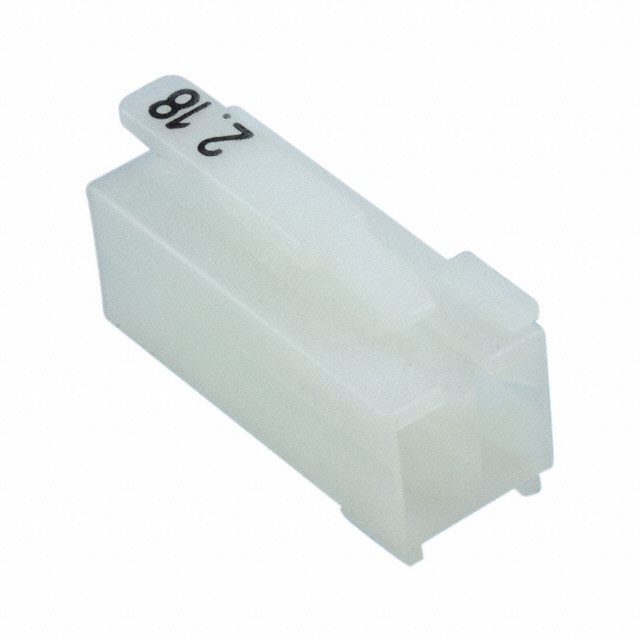

CONN RCPT HSG 2POS 5.00MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
7-969484-2
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 2POS 5.00MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 7-969484-2 | 969484 Series |
|---|---|---|
| Color | Natural | Natural |
| Connector Type | Receptacle | Receptacle, Plug |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket, Male Pin |
| Fastening Type | Latch Lock | Latch Lock, Latch Holder |
| Features | - | Flange |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 2 | 2 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 5 mm | 5 mm |
| Pitch [x] | 0.197 in | 0.197 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 64000 | $ 0.17 | |
969484 Series
CONN RCPT HSG 3POS 5.00MM
| Part | Note | Pitch [x] | Pitch [x] | Insulation Material | Color | Mounting Type | Connector Type | Contact Termination | Fastening Type | Contact Type | Number of Rows | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 969484-8 | Contacts Not Included | 5 mm | 0.197 in | Polyamide (PA66), Nylon 6/6 | Natural | Free Hanging (In-Line) | Receptacle | Crimp | Latch Lock | Female Socket | 1 | ||||
TE Connectivity AMP Connectors 3-969484-1 | Contacts Not Included | 5 mm | 0.197 in | Polyamide (PA66), Nylon 6/6 | Natural | Free Hanging (In-Line) | Receptacle | Crimp | Latch Lock | Female Socket | 1 | 2 | |||
TE Connectivity AMP Connectors 8-969484-7 | Contacts Not Included | 5 mm | 0.197 in | Polyamide (PA66), Nylon 6/6 | Natural | Free Hanging (In-Line) | Receptacle | Crimp | Latch Lock | Female Socket | 1 | ||||
TE Connectivity AMP Connectors 969484-3 | Contacts Not Included | ||||||||||||||
TE Connectivity AMP Connectors 5-969484-7 | Contacts Not Included | 5 mm | 0.197 in | Polyamide (PA66), Nylon 6/6 | Natural | Free Hanging (In-Line) | Receptacle | Crimp | Latch Lock | Female Socket | 1 | ||||
TE Connectivity AMP Connectors 3-969484-7 | Contacts Not Included | 5 mm | 0.197 in | Polyamide (PA66), Nylon 6/6 | Natural | Free Hanging (In-Line) | Receptacle | Crimp | Latch Lock | Female Socket | 1 | ||||
TE Connectivity AMP Connectors 7-969484-2 | Contacts Not Included | 5 mm | 0.197 in | Polyamide (PA66), Nylon 6/6 | Natural | Free Hanging (In-Line) | Receptacle | Crimp | Latch Lock | Female Socket | 1 | 2 | -40 °C | 105 ░C | |
TE Connectivity AMP Connectors 5-969484-2 | Contacts Not Included | 5 mm | 0.197 in | Polyamide (PA66), Nylon 6/6 | Natural | Free Hanging (In-Line) | Receptacle | Crimp | Latch Lock | Female Socket | 1 | 2 | |||
TE Connectivity AMP Connectors 5-969484-3 | Contacts Not Included | 5 mm | 0.197 in | Polyamide (PA66), Nylon 6/6 | Natural | Free Hanging (In-Line) | Receptacle | Crimp | Latch Lock | Female Socket | 1 | 2 | |||
TE Connectivity AMP Connectors 2-969484-1 | Contacts Not Included | 5 mm | 0.197 in | Polyamide (PA66), Nylon 6/6 | Natural | Free Hanging (In-Line) | Receptacle | Crimp | Latch Lock | Female Socket | 1 | 2 |
Description
General part information
969484 Series
2 Rectangular Connectors - Housings Receptacle Natural 0.197" (5.00mm)
