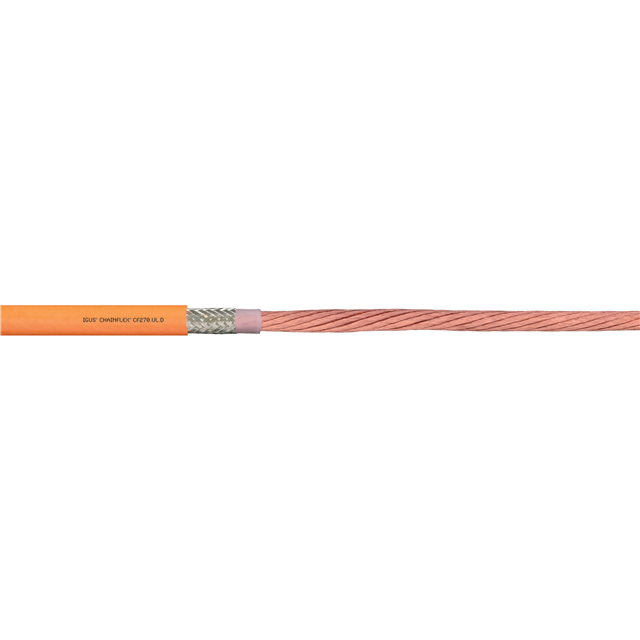

CF270-UL-100-04-D

Active

Igus

CABLE 4CON 8AWG ORNG SHLD FOOT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CF270-UL-100-04-D

Active

Igus

CABLE 4CON 8AWG ORNG SHLD FOOT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Digi-Spool®, Continuous Spool	1	$ 29.98
		2	$ 28.55
		3	$ 27.73
		5	$ 26.74
		7	$ 26.10
		10	$ 25.44
		25	$ 23.81
		50	$ 22.63
		100	$ 21.51

Description

General part information

CF270 Series

4 Conductor Multi-Conductor Cable Orange 8 AWG Foil, Braid Enter Number of Feet in Order Quantity

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CF270-UL-100-04-D	CF270 Series

Cable Type	Multi-Conductor	Hook-Up, Multi-Conductor
Conductor Insulation	Polyethylene (XLPE), Irradiated	Polyethylene (XLPE), Irradiated
Conductor Material	Copper, Bare	Copper, Tinned, Copper, Bare
Features	Flame Retardant, Oil Resistant, Abrasion Resistant	Oil Resistant, Flame Retardant, Abrasion Resistant
Jacket (Insulation) Diameter [diameter]	0.709 "	0.335 - 1.12 in
Jacket (Insulation) Diameter [diameter]	18.01 mm	8.5 - 28.45 mm
Jacket (Insulation) Material	Polyurethane (PU)	Polyurethane (PU)
Jacket Color	Orange	Orange
Length	Enter Number of Feet in Order Quantity	Enter Number of Feet in Order Quantity
Number of Conductors	4	4 - 8
Ratings	UL Style 21223	UL Style 21223
Shield Coverage	80 %, 100 %	80 - 100 %
Shield Material	Copper, Tinned, Aluminum	Copper, Tinned, Aluminum
Shield Type	Foil, Braid	Foil, Braid
Usage	Servo Motor, Industrial	Servo Motor, Industrial
Voltage	1000 V	1000 V
Wire Gauge	8 AWG	4 - 44 AWG
Wire Gauge	-	16 AWG, 8 AWG, 12 AWG, 10 AWG

CF270 Series

PUR 1C/1AWG, SPINDLE CABLE 1000V

Part	Jacket (Insulation) Material	Jacket Color	Cable Type	Conductor Material	Voltage	Wire Gauge	Ratings	Length	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Features	Wire Gauge	Shield Material	Shield Coverage	Usage	Conductor Insulation	Shield Type	Number of Conductors
Igus CF270-UL-500-01-D	Polyurethane (PU)	Orange	Hook-Up	Copper, Tinned	1000 V	44 AWG	UL Style 21223	Enter Number of Feet in Order Quantity	15 mm	0.591 in	Oil Resistant
Igus CF270-UL-100-15-02-01-D	Polyurethane (PU)	Orange	Multi-Conductor	Copper, Bare	1000 V		UL Style 21223	Enter Number of Feet in Order Quantity	21.01 mm	0.827 in	Abrasion Resistant, Flame Retardant, Oil Resistant	16 AWG, 8 AWG	Aluminum, Copper, Tinned	80 %, 100 %	Industrial, Servo Motor	Polyethylene (XLPE), Irradiated	Braid, Foil	6
Igus CF270-UL-700-01-D	Polyurethane (PU)	Orange	Hook-Up	Copper, Tinned	1000 V		UL Style 21223	Enter Number of Feet in Order Quantity	16.99 mm	0.669 "	Oil Resistant
Igus CF270-UL-160-04-D	Polyurethane (PU)	Orange	Multi-Conductor	Copper, Bare	1000 V	6 AWG	UL Style 21223	Enter Number of Feet in Order Quantity	22 mm	0.866 in	Abrasion Resistant, Flame Retardant, Oil Resistant		Aluminum, Copper, Tinned	80 %, 100 %	Industrial, Servo Motor	Polyethylene (XLPE), Irradiated	Braid, Foil	4
Igus CF270-UL-250-15-02-02-D	Polyurethane (PU)	Orange	Multi-Conductor	Copper, Bare	1000 V	4 AWG, 16 AWG	UL Style 21223	Enter Number of Feet in Order Quantity			Abrasion Resistant, Flame Retardant, Oil Resistant		Aluminum, Copper, Tinned	80 %, 100 %	Industrial, Servo Motor	Polyethylene (XLPE), Irradiated	Braid, Foil	8
Igus CF270-UL-250-01-D	Polyurethane (PU)	Orange	Hook-Up	Copper, Tinned	1000 V	4 AWG	UL Style 21223	Enter Number of Feet in Order Quantity	11 mm	0.433 in	Oil Resistant
Igus CF270-UL-250-15-02-01-D	Polyurethane (PU)	Orange	Multi-Conductor	Copper, Bare	1000 V	4 AWG, 16 AWG	UL Style 21223	Enter Number of Feet in Order Quantity	28.45 mm	1.12 in	Abrasion Resistant, Flame Retardant, Oil Resistant		Aluminum, Copper, Tinned	80 %, 100 %	Industrial, Servo Motor	Polyethylene (XLPE), Irradiated	Braid, Foil	6
Igus CF270-UL-07-03-02-02-D	Polyurethane (PU)	Orange	Multi-Conductor	Copper, Bare	1000 V	18 AWG, 22 AWG	UL Style 21223	Enter Number of Feet in Order Quantity	11.99 mm	0.472 in	Abrasion Resistant, Flame Retardant, Oil Resistant		Aluminum, Copper, Tinned	80 %, 100 %	Industrial, Servo Motor	Polyethylene (XLPE), Irradiated	Braid, Foil	8
Igus CF270-UL-40-15-02-02-D	Polyurethane (PU)	Orange	Multi-Conductor	Copper, Bare	1000 V		UL Style 21223	Enter Number of Feet in Order Quantity	16.99 mm	0.669 "	Abrasion Resistant, Flame Retardant, Oil Resistant	12 AWG, 16 AWG	Aluminum, Copper, Tinned	80 %, 100 %	Industrial, Servo Motor	Polyethylene (XLPE), Irradiated	Braid, Foil	8
Igus CF270-UL-250-04-D	Polyurethane (PU)	Orange	Multi-Conductor	Copper, Bare	1000 V	4 AWG	UL Style 21223	Enter Number of Feet in Order Quantity	25.5 mm	1.004 in	Abrasion Resistant, Flame Retardant, Oil Resistant		Aluminum, Copper, Tinned	80 %, 100 %	Industrial, Servo Motor	Polyethylene (XLPE), Irradiated	Braid, Foil	4
