Description
General part information
213031

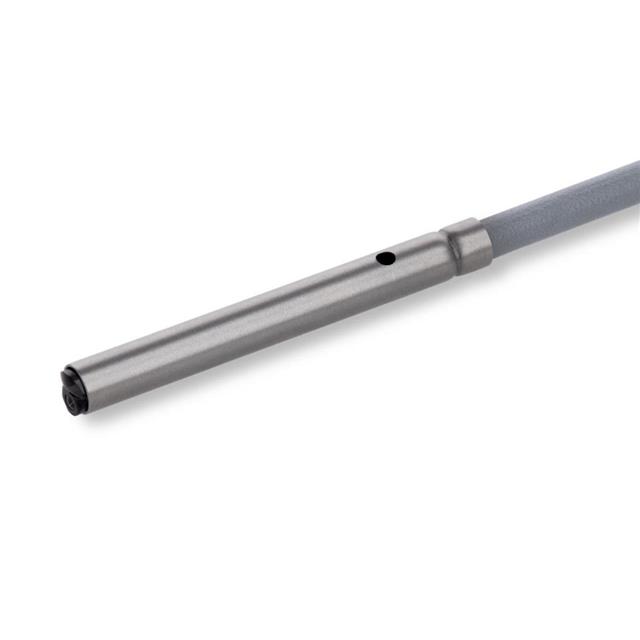

Diffuse Optical Sensor 1.969" (50mm) PNP-NO
Technical Specifications
Parameters and characteristics for this part
| Specification | 213031 |
|---|---|
| Cable Length | 78.74 in |
| Connection Method | Cable |
| Ingress Protection | IP67 |
| Light Source | Red Laser Diode |
| Light Source Wavelength (Red Laser Diode) | 630 nm |
| Operating Temperature (Max) | 65 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | PNP-NO |
| Sensing Distance | 1.969 " |
| Sensing Method | Diffuse |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
