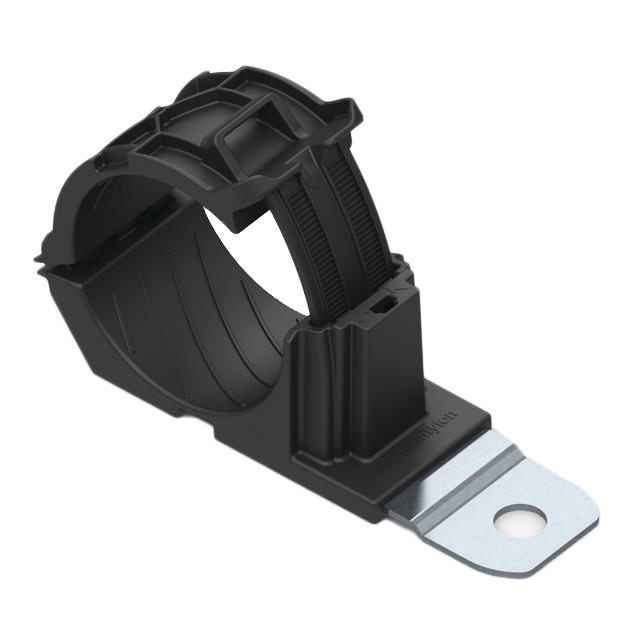

Specification	151-02009

Bundle Center to Mounting Center	2.76 in
Color	Black
Features	UV Resistant, Impact Resistant, Heat Stabilized
Length	4.547 in
Material	6, Steel, Polyamide (PA66), Nylon 6
Material Flammability Rating	UL94 HB
Mounting Type	Fastener
Opening Size (Max)	2.008 in
Opening Size (Min)	1.417 in
Panel Hole Size	0.327 in
Screw Size	M8
Type	P-Type, Clamp
Type Attributes	Ratchet, Ribbed
Type Attributes Angle	180 °
Width	1.374 in

151-02 Series

Part	Material Flammability Rating	Panel Hole Size	Material	Features	Length	Color	Type Attributes Angle	Type Attributes	Opening Size (Max)	Opening Size (Min)	Mounting Type	Width	Type
HELLERMANNTYTON 151-01514	UL94 HB	0.51 in	6 Nylon 6 Polyamide (PA66) Steel	Chemical Resistant Heat Stabilized Impact Resistant Slotted for Cable Tie UV Resistant	3.74 in	Black	30 °	Ratchet Ribbed	2 in	1.39 in	Fastener	1.374 in	Clamp P-Type
HELLERMANNTYTON 151-01523	UL94 HB	0.51 in	6 Nylon 6 Polyamide (PA66) Steel	Chemical Resistant Heat Stabilized Impact Resistant Slotted for Cable Tie UV Resistant	4.594 in	Black	90 °	Ratchet Ribbed	2 in	1.39 in	Fastener	1.374 in	Clamp P-Type
HELLERMANNTYTON 151-02036	UL94 HB	0.256 in	6 Nylon 6 Polyamide (PA66) Steel	Heat Stabilized Impact Resistant UV Resistant	4.594 in	Black	90 °	Ratchet Ribbed	2.008 in	1.417 in	Fastener	1.374 in	Clamp P-Type
