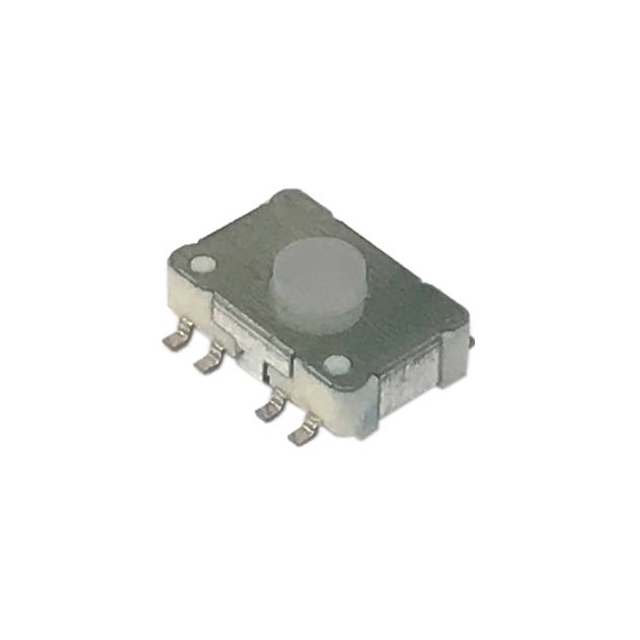

228HMVARBFR

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	228HMVARBFR	228HMVA Series

Actuator Height off PCB, Vertical [z]	3.05 mm	3.05 mm
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Standard	Standard
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC	0.05 - 12 A
Illumination	Illuminated	Illuminated
Illumination Type, Color	Blue/Red, LED	Blue/Red, LED, White
Illumination Type, Color	-	Blue/Green
Illumination Type, Color	-	LED
Illumination Voltage (Nominal)	-	1.9 - 3.2 VDC
Mechanical Life	100000 Cycles	100000 Cycles
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 C	-20 C
Outline [x]	8 mm	8 mm
Outline [y]	5.2 mm	5.2 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	0.5 mm	0.5 mm
Termination Style	Gull Wing	Gull Wing

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Mounting Type	Switch Travel	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Illumination	Mechanical Life	Outline [y]	Outline [x]	Illumination Type, Color	Actuator Orientation	Actuator Height off PCB, Vertical [z]	Circuit	Termination Style	Switch Function	Contact Rating @ Voltage	Illumination Voltage (Nominal)	Illumination Type, Color [custom]	Illumination Type, Color [custom]
CTS Electrocomponents 228HMVARBFR	Surface Mount	0.5 mm	-20 C	70 °C	Standard	Illuminated	100000 Cycles	5.2 mm	8 mm	Blue/Red, LED	Top Actuated	3.05 mm	SPST-NO	Gull Wing	Off-Mom	0.05 A, 12 VDC
CTS Electrocomponents 228HMVALBFR	Surface Mount	0.5 mm	-20 C	70 °C	Standard	Illuminated	100000 Cycles	5.2 mm	8 mm		Top Actuated	3.05 mm	SPST-NO	Gull Wing	Off-Mom	0.05 A, 12 VDC	1.9 VDC, 3.2 VDC	Blue/Green	LED
CTS Electrocomponents 228HMVAABFR	Surface Mount	0.5 mm	-20 C	70 °C	Standard	Illuminated	100000 Cycles	5.2 mm	8 mm		Top Actuated	3.05 mm	SPST-NO	Gull Wing	Off-Mom	0.05 A, 12 VDC
CTS Electrocomponents 228HMVAWFR	Surface Mount	0.5 mm	-20 C	70 °C	Standard	Illuminated	100000 Cycles	5.2 mm	8 mm	LED, White	Top Actuated	3.05 mm	SPST-NO	Gull Wing	Off-Mom	0.05 A, 12 VDC	3 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
