Description
General part information

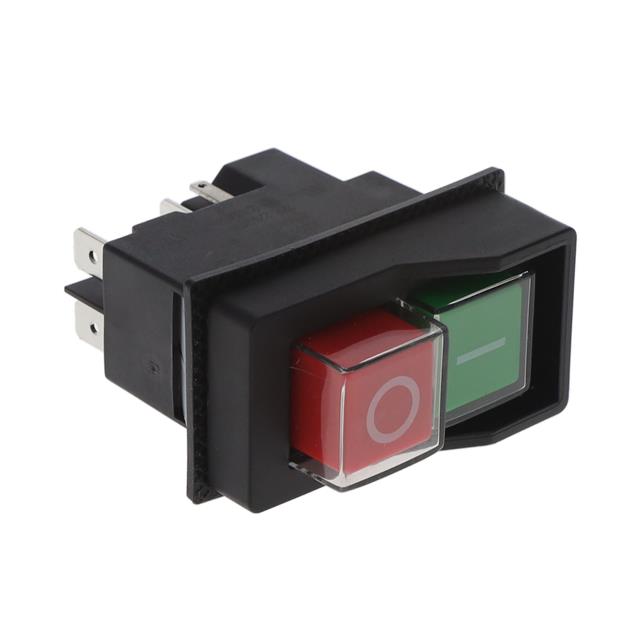

KJD17-22413-112
Pushbutton Switch DPST Standard Panel Mount, Snap-In
Technical Specifications
Parameters and characteristics for this part
| Specification | KJD17-22413-112 |
|---|---|
| Actuator Type | Square, Button, Dual |
| Circuit | DPST |
| Color - Actuator/Cap | Red, Green |
| Current Rating | 16 A |
| Electrical Life (Cycles) | 10000 Cycles |
| Ingress Protection Description | Water Resistant, Dust Protected |
| Ingress Protection IP Rating | IP54 |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Panel Cutout Length | 46 mm |
| Panel Cutout Shape | Rectangular |
| Panel Cutout Width | 22 mm |
| Quick Connect Size (0.250") | 0.25 in |
| Switch Function | Off-On |
| Termination Style | Quick Connect |
| Type | Standard |
| Voltage Rating - AC | 230 V |
