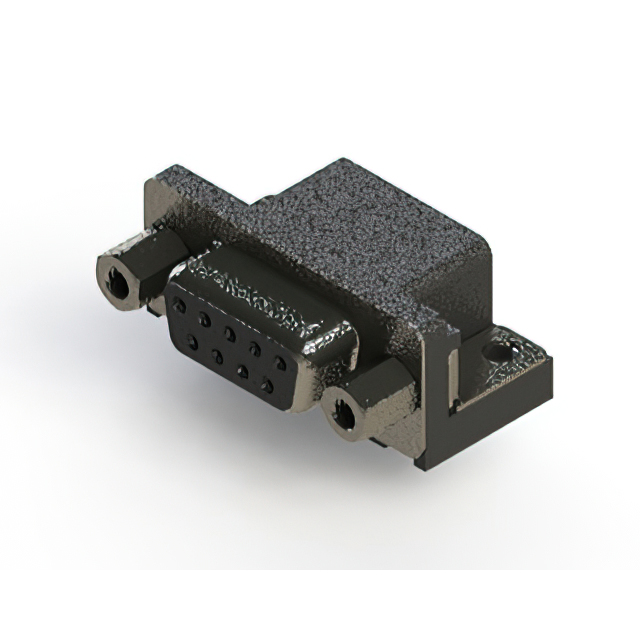

630-009-340-513

Active

EDAC Inc.

D-SUB RIGHT ANGLE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

630-009-340-513

Active

EDAC Inc.

D-SUB RIGHT ANGLE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	630-009-340-513

Backset Spacing	0.409 in
Backset Spacing	10.4 mm
Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Mounting Brackets, Shielded, Board Lock
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder

630-009 Series

Part	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Current Rating (Amps)	Connector Type	Dielectric Material	Termination	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Contact Finish	Contact Material	Contact Type	Flange Feature	Backset Spacing	Backset Spacing	Number of Rows	Features	Material Flammability Rating	Connector Style	Color	Shell Material, Finish	Contact Finish Thickness
EDAC Inc. 630-009-640-042	DE E	1	3 A	Receptacle Female Sockets	Polyester Thermoplastic	Solder	0.76 Ám	30 Áin	Board Edge Right Angle Through Hole	85 °C	-55 °C	9	Gold	Copper Alloy	Signal	Housing/Shell (4-40)	0.409 in	10.4 mm	2	Board Lock Mounting Brackets Shielded	UL94 V-0	D-Sub	Black	Nickel Plated Steel
EDAC Inc. 630-009-640-013	DE E	1	3 A	Receptacle Female Sockets	Polyester Thermoplastic	Solder	0.76 Ám	30 Áin	Board Edge Right Angle Through Hole	85 °C	-55 °C	9	Gold	Copper Alloy	Signal	Female Screwlock (4-40) Mating Side	0.409 in	10.4 mm	2	Board Lock Mounting Brackets Shielded	UL94 V-0	D-Sub	Black	Nickel Plated Steel
EDAC Inc. 630-009-640-015	DE E	1	3 A	Receptacle Female Sockets	Polyester Thermoplastic	Solder	0.76 Ám	30 Áin	Board Edge Right Angle Through Hole	85 °C	-55 °C	9	Gold	Copper Alloy	Signal	Housing/Shell (M3)	0.409 in	10.4 mm	2	Mounting Brackets Shielded	UL94 V-0	D-Sub	Black	Nickel Plated Steel
EDAC Inc. 630-009-640-531	DE E	1	3 A	Receptacle Female Sockets	Polyester Thermoplastic	Solder	0.76 Ám	30 Áin	Through Hole Right Angle	125 °C	-55 °C	9	Gold	Copper Alloy	Signal	Housing/Shell (Unthreaded)	0.409 in	10.4 mm	2	Board Lock Mounting Brackets Shielded	UL94 V-0	D-Sub	Black	Nickel Plated Steel
EDAC Inc. 630-009-640-541	DE E	1	3 A	Receptacle Female Sockets	Polyester Thermoplastic	Solder	0.76 Ám	30 Áin	Board Edge Right Angle Through Hole	125 °C	-55 °C	9	Gold	Copper Alloy	Signal	Housing/Shell (Unthreaded)	0.409 in	10.4 mm	2	Board Lock Mounting Brackets Shielded	UL94 V-0	D-Sub	Black	Nickel Plated Steel
EDAC Inc. 630-009-640-542	DE E	1	3 A	Receptacle Female Sockets	Polyester Thermoplastic	Solder	0.76 Ám	30 Áin	Board Edge Right Angle Through Hole	125 °C	-55 °C	9	Gold	Copper Alloy	Signal	Housing/Shell (4-40)	0.409 in	10.4 mm	2	Board Lock Mounting Brackets Shielded	UL94 V-0	D-Sub	Black	Nickel Plated Steel
EDAC Inc. 630-009-340-513	DE E	1	3 A	Receptacle Female Sockets	Polyester Thermoplastic	Solder	0.38 µm	15 µin	Board Edge Right Angle Through Hole	125 °C	-55 °C	9	Gold	Copper Alloy	Signal	Female Screwlock (4-40) Mating Side	0.409 in	10.4 mm	2	Board Lock Mounting Brackets Shielded	UL94 V-0	D-Sub	Black	Nickel Plated Steel
EDAC Inc. 630-009-340-511	DE E	1	3 A	Receptacle Female Sockets	Polyester Thermoplastic	Solder	0.38 µm	15 µin	Board Edge Right Angle Through Hole	125 °C	-55 °C	9	Gold	Copper Alloy	Signal	Housing/Shell (Unthreaded)	0.409 in	10.4 mm	2	Mounting Brackets Shielded	UL94 V-0	D-Sub	Black	Nickel Plated Steel
EDAC Inc. 630-009-240-031	DE E	1	3 A	Receptacle Female Sockets	Polyester Thermoplastic	Solder			Through Hole Right Angle	85 °C	-55 °C	9	Gold	Copper Alloy	Signal	Housing/Shell (Unthreaded)	0.409 in	10.4 mm	2	Board Lock Mounting Brackets Shielded	UL94 V-0	D-Sub	Black	Nickel Plated Steel	Flash
EDAC Inc. 630-009-640-511	DE E	1	3 A	Receptacle Female Sockets	Polyester Thermoplastic	Solder	0.76 Ám	30 Áin	Board Edge Right Angle Through Hole	125 °C	-55 °C	9	Gold	Copper Alloy	Signal	Housing/Shell (Unthreaded)	0.409 in	10.4 mm	2	Mounting Brackets Shielded	UL94 V-0	D-Sub	Black	Nickel Plated Steel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1000	$ 1.89
Newark	Each	1000	$ 2.46
		2500	$ 2.26

Description

General part information

630-009 Series

9 Position D-Sub Receptacle, Female Sockets Connector
