1748C SL002

Active

ALPHA WIRE

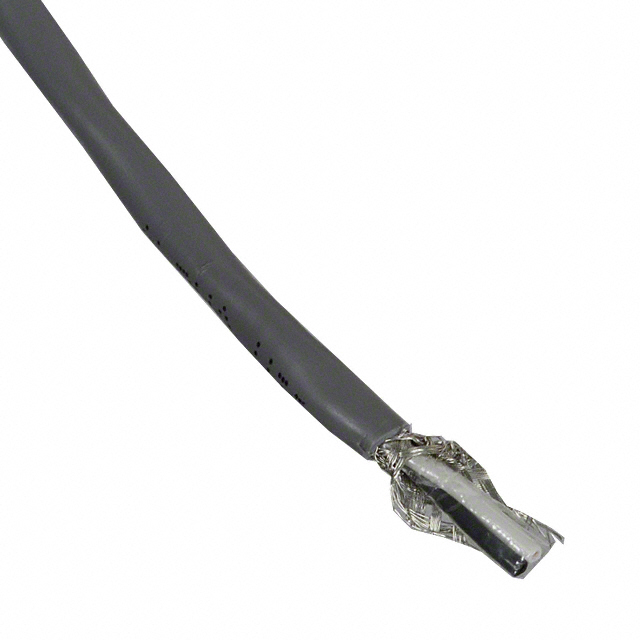

CABLE 2COND 16AWG SLATE SHLD

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 2COND 16AWG SLATE SHLD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1748C SL002	1748C Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	19	19
Conductor Strand [custom]	0.0117 in	0.0117 in
Jacket (Insulation) Diameter [diameter]	6.27 mm	6.27 mm
Jacket (Insulation) Diameter [diameter]	0.247 "	0.247 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in	0.02 in
Jacket (Insulation) Thickness	0.508 mm	0.508 mm
Jacket Color	Slate	Slate
Length [x]	500 '	100 - 500 ft
Length [x]	152.4 m	30.5 - 152.4 m
Number of Conductors	2	2
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Shield Coverage	75 %	75 %
Shield Material	Copper, Bare	Copper, Bare
Shield Type	Braid	Braid
Usage	Control, Communication	Control, Communication
Voltage	300 V	300 V
Wire Gauge	16 AWG	16 AWG

CABLE 2CON 16AWG SLATE SHLD

Part	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Insulation	Jacket (Insulation) Material	Number of Conductors	Length [x]	Length [x]	Conductor Material	Shield Coverage	Usage	Operating Temperature [Min]	Operating Temperature [Max]	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Material	Cable Type	Wire Gauge
ALPHA WIRE 1748C SL005	Slate	6.27 mm	0.247 "	Braid	19	0.0117 in	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	2	30.5 m	100 ft	Copper, Tinned	75 %	Communication, Control	-20 C	80 C	300 V	0.02 in	0.508 mm	Copper, Bare	Multi-Conductor	16 AWG
ALPHA WIRE 1748C SL002	Slate	6.27 mm	0.247 "	Braid	19	0.0117 in	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	2	152.4 m	500 '	Copper, Tinned	75 %	Communication, Control	-20 C	80 C	300 V	0.02 in	0.508 mm	Copper, Bare	Multi-Conductor	16 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 5.89

General part information

2 Conductor Multi-Conductor Cable Slate 16 AWG Braid 500.0' (152.4m)
