HS2P4M20-BPE

Active

Switchcraft Inc.

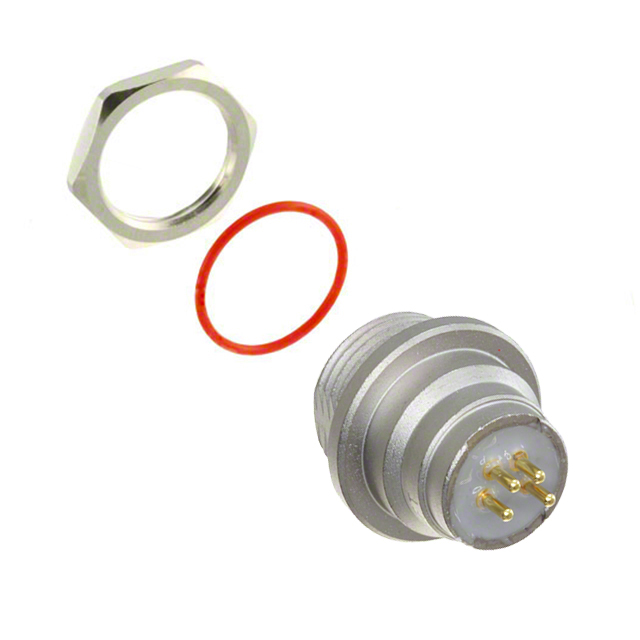

CONN RCPT MALE 4POS GOLD SOLDER

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT MALE 4POS GOLD SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HS2P4M20-BPE	HS2P4M Series

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Color	Silver	Silver
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	4	4
Operating Temperature [Max]	135 °C	135 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Electroless Nickel	Electroless Nickel
Shell Material	Copper Alloy	Copper Alloy
Shielding	Shielded	Shielded
Termination	Solder	Solder
Voltage Rating	125 VAC	125 VAC

CONN RCPT MALE 4POS GOLD SOLDER

Part	Connector Type	Mounting Feature	Shell Material	Number of Positions	Color	Shell Finish	Applications	Ingress Protection	Insert Material	Shielding	Mounting Type	Termination	Orientation	Voltage Rating	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Contact Finish - Mating	Fastening Type
Switchcraft Inc. HS2P4M20-BP	Male Pins, Receptacle	Bulkhead - Front Side Nut	Copper Alloy	4	Silver	Electroless Nickel	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	IP66, IP67, IP68	Liquid Crystal Polymer (LCP)	Shielded	Panel Mount, Through Hole	Solder	Keyed	125 VAC	Copper Alloy	135 °C	-40 °C	Metal	Gold	Push-Pull
Switchcraft Inc. HS2P4M20-BPE	Male Pins, Receptacle	Bulkhead - Front Side Nut	Copper Alloy	4	Silver	Electroless Nickel	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	IP66, IP67, IP68	Liquid Crystal Polymer (LCP)	Shielded	Panel Mount, Through Hole	Solder	Keyed	125 VAC	Copper Alloy	135 °C	-40 °C	Metal	Gold	Push-Pull

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Male Pins Solder
