15030
ActiveKeystone Electronics
TURRET BOARD 50POS 0.218" FORK
15030
ActiveKeystone Electronics
TURRET BOARD 50POS 0.218" FORK
Description
General part information
15030

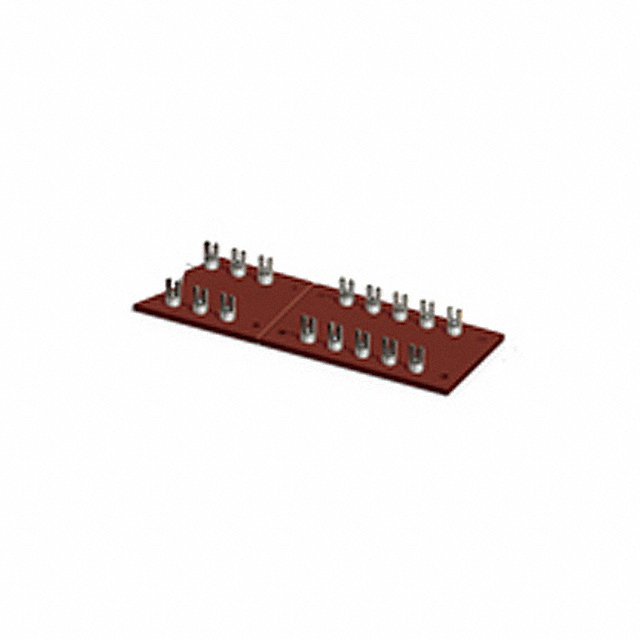

50 Position Turret Board, Scored 0.218" (5.54mm) Turret, Fork End
Technical Specifications
Parameters and characteristics for this part
| Specification | 15030 |
|---|---|
| Board Height | 0.062 in |
| Board Length | 7.812 in |
| Board Width | 1 in |
| Contact Finish | Tin |
| Contact Material | Brass |
| Features | Miniature Strip |
| Material - Board | PBE |
| Mounting Hole Diameter | 0.062 in |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Pitch | 0.218 in |
| Row Spacing | 0.75 in |
| Terminal Type | Fork End, Turret |
| Type | Scored, Turret Board |
