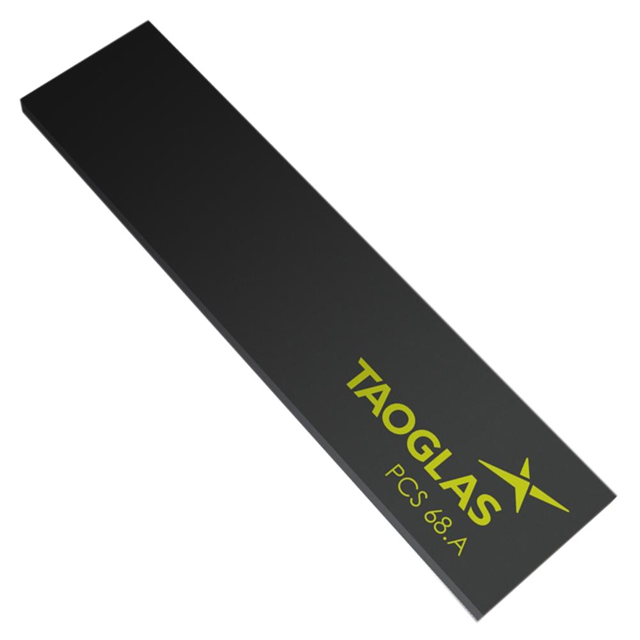

PCS.68.A
ActiveTAOGLAS
RF ANTENNA, 5.15 TO 5.925GHZ, PCB, 4DBI, 50 OHM, LINEAR
Deep-Dive with AI
Search across all available documentation for this part.
PCS.68.A
ActiveTAOGLAS
RF ANTENNA, 5.15 TO 5.925GHZ, PCB, 4DBI, 50 OHM, LINEAR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PCS.68.A |
|---|---|
| Antenna Type | PCB Trace |
| Applications | LTE, 3G, 4G, Wi-Fi |
| Frequency (Center/Band) | 2.59 GHz, 3.55 GHz, 1.955 GHz, 788.5 MHz, 1.4725 GHz, 5.5375 GHz, 2.45 GHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 3.8 GHz, 2.69 GHz, 5.925 GHz, 1.518 GHz, 960 MHz, 2.2 GHz, 2.5 GHz |
| Frequency Range [Min] | 2.4 GHz, 617 MHz, 1.427 GHz, 2.49 GHz, 5.15 GHz, 1.71 GHz, 3.3 GHz |
| Gain | 4 dBi, 2 dBic, -2 dBi, -1 dBi, 4.5 dBi, 3.8 dBi |
| Height (Max) [Max] | 1.5 mm |
| Height (Max) [Max] | 0.059 in |
| Mounting Type | Surface Mount |
| Number of Bands | 7 |
| RF Family/Standard | Cellular, WiFi |
| Termination | SMA Female |
| VSWR | 3.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PCS.68.A
RF ANTENNA 3G, 4G, LTE, Wi-Fi PCB Trace SMA Female Surface Mount
