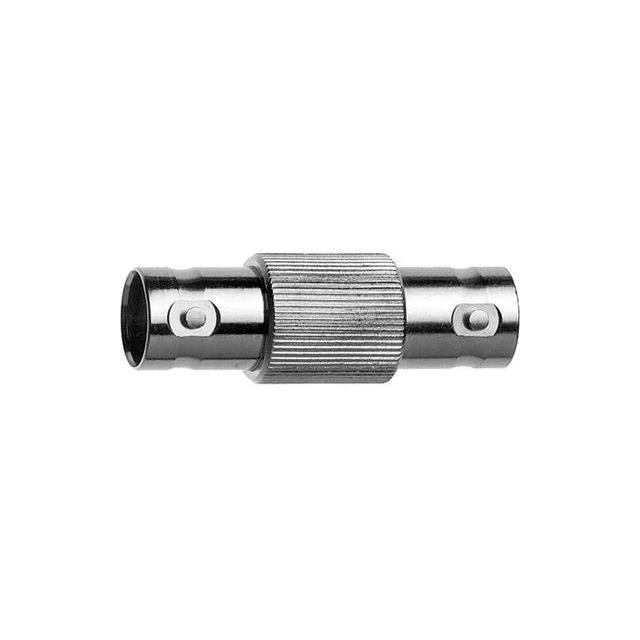

100023589
ActiveTelegartner Inc
BNC ADAPT STR F-F Z50
100023589
ActiveTelegartner Inc
BNC ADAPT STR F-F Z50
Description
General part information
100023589
Adapter Coaxial Connector BNC Jack, Female Socket To BNC Jack, Female Socket 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | 100023589 |
|---|---|
| Adapter Series | BNC to BNC |
| Adapter Type | Jack to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Brass, Copper |
| Center Contact Plating | Gold |
| Center Gender | Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | BNC Jack, Female Socket |
| Convert To (Adapter End) Gender | Female Socket |
| Convert To (Adapter End) Type | BNC Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Frequency - Max | 4 GHz |
| Impedance | 50 Ohm |
| Ingress Protection Description | Water Resistant, Dust Protected |
| Ingress Protection IP Rating | IP54 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -40 °C |
| Style | Straight |
