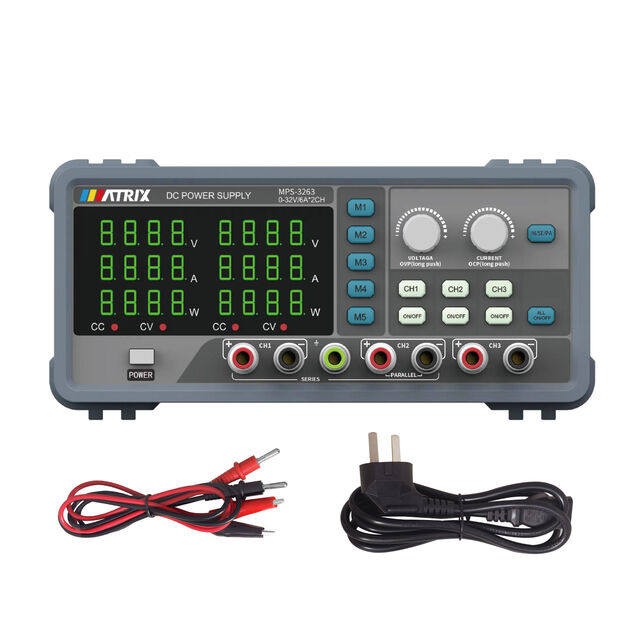

MPS-3263
ActiveMATRIX TECHNOLOGY INC.
32V 6A, 399W, 3CH, CODING SWITCH
MPS-3263
ActiveMATRIX TECHNOLOGY INC.
32V 6A, 399W, 3CH, CODING SWITCH
Description
General part information
MPS-3263
0 ~ 32V, 2.5V, 3.3V, 5V Output Bench (AC to DC) Power Supply LED 0 ~ 6A, 0 ~ 6A, 3A Output 399W Features Adjustable, Memory, Series/Parallel Channel Switching
Technical Specifications
Parameters and characteristics for this part
| Specification | MPS-3263 |
|---|---|
| Accuracy - Ammeter (Absolute) | 5 mA |
| Accuracy - Ammeter (Percent) | 0.5 % |
| Accuracy - Voltmeter (Percent) | 0.1 % |
| Current - Output | 3 A |
| Current - Output (Channel 1) Maximum | 6 A |
| Current - Output (Channel 1) Minimum | 0 A |
| Current - Output (Channel 2) Maximum | 6 A |
| Current - Output (Channel 2) Minimum | 0 A |
| Current Regulation - Line (Absolute) | 5 mA |
| Current Regulation - Line (Percentage) | 0.1 % |
| Current Regulation - Load (Absolute) | 5 mA |
| Current Regulation - Load (Percentage) | 0.1 % |
| Display Type | LED |
| Features | Series/Parallel Channel Switching, Memory, Adjustable |
| Number of Characters | 4 characters |
| Number of Outputs | 3 |
| Power (Watts) | 399 W |
| Ripple Current (RMS) | 5 mA |
| Ripple Voltage (RMS) | 10 mV |
| Size / Dimension Height | 5.906 in |
| Size / Dimension Length | 12.992 in |
| Size / Dimension Width | 8.661 in |
| Type | Bench (AC to DC) |
| Voltage - Output | 5 VDC, 3.3 V, 2.5 V |
| Voltage - Output (Max) | 32 V |
| Voltage - Output (Min) | 0 V |
| Voltage - Output (Typical) | 2.5 V |
| Voltage - Supply | 220 VAC, 110 VAC |
| Voltage - Supply | 220VAC, 110VAC |
| Voltage - Supply (Option 1) | 110 VAC |
| Voltage - Supply (Option 2) | 220 VAC |
| Voltage Regulation - Line (Absolute) | 8 mV |
| Voltage Regulation - Line (Percentage) | 0.1 % |
| Voltage Regulation - Load (Percentage) | 0.1 % |
| Voltage Regulation - Load (Voltage Offset) | 8 mV |
| Weight | 7.7 lbs |
