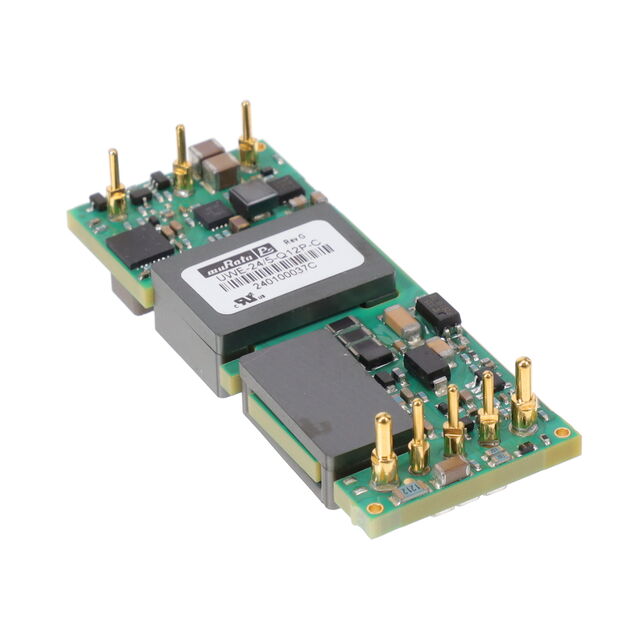

UWE-24/5-Q12P-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 24V 120W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UWE-24/5-Q12P-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 24V 120W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | UWE-24/5-Q12P-C | UWE-24 Series |
|---|---|---|
| - | - | |
| Applications | ITE (Commercial) | ITE (Commercial) |
| Control Features | Active High, Enable | Active High, Enable, Active Low |
| Current - Output (Max) [Max] | 5 A | 3 - 5 A |
| Efficiency | 92 % | 92 % |
| Features | - | OCP, UVLO, OTP, Remote On/Off, SCP, OVP, Remote Sense, Baseplate |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | Eighth Brick | 8-DIP Module, 1/8 Brick, Eighth Brick |
| Power (Watts) | 120 W | 72 - 120 W |
| Size / Dimension | - | 22.9 mm |
| Size / Dimension | - | 13.2 mm |
| Size / Dimension [x] | 58.4 mm | 58.4 mm |
| Size / Dimension [x] | 2.3 in | 2.3 in |
| Size / Dimension [y] | 0.9 " | 0.9 " |
| Size / Dimension [y] | 22.9 mm | 22.9 mm |
| Size / Dimension [z] | 0.4 " | 0.34 - 0.52 in |
| Size / Dimension [z] | 10.2 mm | 8.6 - 10.2 mm |
| Supplier Device Package | Eighth Brick | Eighth Brick |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V | 36 V |
| Voltage - Input (Min) [Min] | 9 V | 9 V |
| Voltage - Isolation | 2250 VDC | 1.5 - 2250 kV |
| Voltage - Output 1 | 24 V | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 79.20 | |
| 5 | $ 77.20 | |||
| 10 | $ 73.47 | |||
| 25 | $ 69.30 | |||
| 50 | $ 65.57 | |||
| 100 | $ 62.87 | |||
UWE-24 Series
ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, 4:1, 120 W, 1 OUTPUT, 24 V, 5 A
| Part | Applications | Voltage - Input (Min) [Min] | Mounting Type | Voltage - Isolation | Features | Power (Watts) | Voltage - Output 1 | Number of Outputs | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Voltage - Input (Max) [Max] | Current - Output (Max) [Max] | Type | Control Features | Efficiency | Supplier Device Package | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. UWE-24/5-Q12PB-C | |||||||||||||||||||||||||
Murata Power Solutions Inc. UWE-24/3-Q12PB-C | ITE (Commercial) | 9 V | Through Hole | 1.5 kV | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | 72 W | 24 V | 1 | 2.3 in | 0.9 " | 8.6 mm | 0.34 in | 22.9 mm | 58.4 mm | 85 °C | -40 °C | 1/8 Brick, 8-DIP Module | 36 V | 3 A | Isolated Module | Active High, Enable | ||||
Murata Power Solutions Inc. UWE-24/5-Q12PB-C | |||||||||||||||||||||||||
Murata Power Solutions Inc. UWE-24/3-Q12PB-C | |||||||||||||||||||||||||
Murata Power Solutions Inc. UWE-24/5-Q12N-C | ITE (Commercial) | 9 V | Through Hole | 2250 VDC | 120 W | 24 V | 1 | 2.3 in | 0.9 " | 10.2 mm | 0.4 " | 22.9 mm | 58.4 mm | 85 °C | -40 °C | Eighth Brick | 36 V | 5 A | Isolated Module | Active Low, Enable | 92 % | Eighth Brick | |||
Murata Power Solutions Inc. UWE-24/5-Q12P-C | ITE (Commercial) | 9 V | Through Hole | 2250 VDC | 120 W | 24 V | 1 | 2.3 in | 0.9 " | 10.2 mm | 0.4 " | 22.9 mm | 58.4 mm | 85 °C | -40 °C | Eighth Brick | 36 V | 5 A | Isolated Module | Active High, Enable | 92 % | Eighth Brick | |||
Murata Power Solutions Inc. UWE-24/5-Q12PB-C | ITE (Commercial) | 9 V | Through Hole | 2250 VDC | Baseplate, Remote On/Off, Remote Sense | 120 W | 24 V | 1 | 2.3 in | 0.9 " | 0.52 " | 58.4 mm | 85 °C | -40 °C | Eighth Brick | 36 V | 5 A | Isolated Module | Active High, Enable | 92 % | Eighth Brick | 22.9 mm | 13.2 mm | ||
Murata Power Solutions Inc. UWE-24/3-Q12N-C | ITE (Commercial) | 9 V | Through Hole | 1.5 kV | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | 72 W | 24 V | 1 | 2.3 in | 0.9 " | 8.6 mm | 0.34 in | 22.9 mm | 58.4 mm | 85 °C | -40 °C | 1/8 Brick, 8-DIP Module | 36 V | 3 A | Isolated Module | Active Low, Enable |
Description
General part information
UWE-24 Series
Isolated Module DC DC Converter 1 Output 24V 5A 9V - 36V Input
