SW350804-1
ActiveDB Unlimited

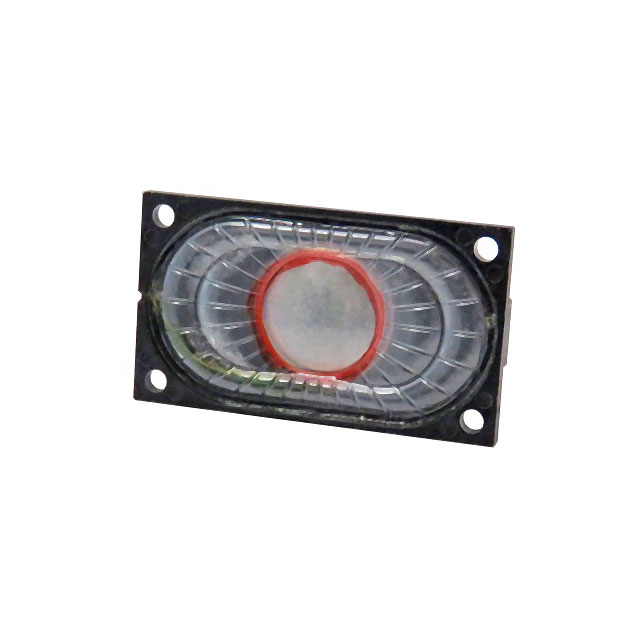

SPEAKER 4OHM 2W TOP PORT 100DB
SW350804-1
ActiveDB Unlimited
SPEAKER 4OHM 2W TOP PORT 100DB
Description
General part information
SW350804-1
4 Ohms General Purpose Speaker 2 W 850 Hz ~ 20 kHz Top Rectangular
Technical Specifications
Parameters and characteristics for this part
| Specification | SW350804-1 |
|---|---|
| Efficiency - dBA | 100 dBA |
| Efficiency - Testing (Length) | 100 mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 850 Hz |
| Frequency Range (Max) | 20 kHz |
| Frequency Range (Min) | 850 Hz |
| Height - Seated (Max) | 0.228 in |
| Impedance | 4 Ohms |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Material - Cone | Polyethylene Naphthalate (PEN) |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Port Location | Top |
| Power - Max | 2.5 VA |
| Power - Rated | 2 W |
| Shape | Rectangular |
| Size / Dimension Length | 1.378 in |
| Size / Dimension Width | 0.787 in |
| Technology | Magnetic |
| Termination | Solder Pads |
| Type | General Purpose |
