153244-2020-RB

Active

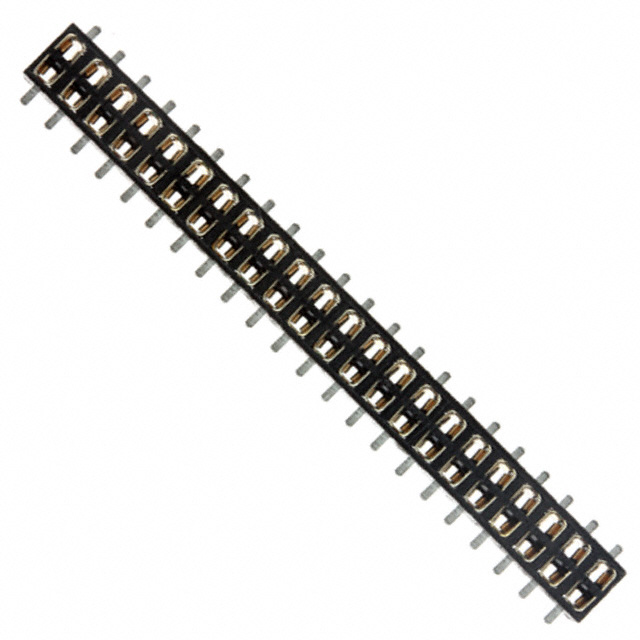

CONN RCPT 44POS 0.079 GOLD SMD

Search across all available documentation for this part.

Active

CONN RCPT 44POS 0.079 GOLD SMD

Technical Specifications

Parameters and characteristics for this part

Specification	153244-2020-RB

Connector Type	Receptacle, Bottom or Top Entry
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Features	Board Guide
Insulation Color	Black
Insulation Height	0.129 in
Insulation Height	3.28 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	44
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	500 V

CONN RCPT 44POS 0.079 GOLD SMD

Part	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Row Spacing - Mating	Row Spacing - Mating	Termination	Number of Positions Loaded	Contact Finish - Post	Number of Positions	Contact Finish - Mating	Fastening Type	Connector Type	Mounting Type	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Style	Contact Shape	Features	Voltage Rating	Contact Material	Insulation Color	Insulation Height	Insulation Height	Number of Rows
3M 153244-2020-RB	Female Socket	30 Áin	0.76 Ám	0.079 in	2 mm	0.079 in	2 mm	Solder	All	Tin	44	Gold	Push-Pull	Receptacle, Bottom or Top Entry	Surface Mount	UL94 V-0	105 ░C	-55 °C	Board to Board, Cable	Square	Board Guide	500 V	Copper Alloy	Black	0.129 in	3.28 mm	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

44 Position Receptacle, Bottom or Top Entry Connector 0.079" (2.00mm) Surface Mount Gold
