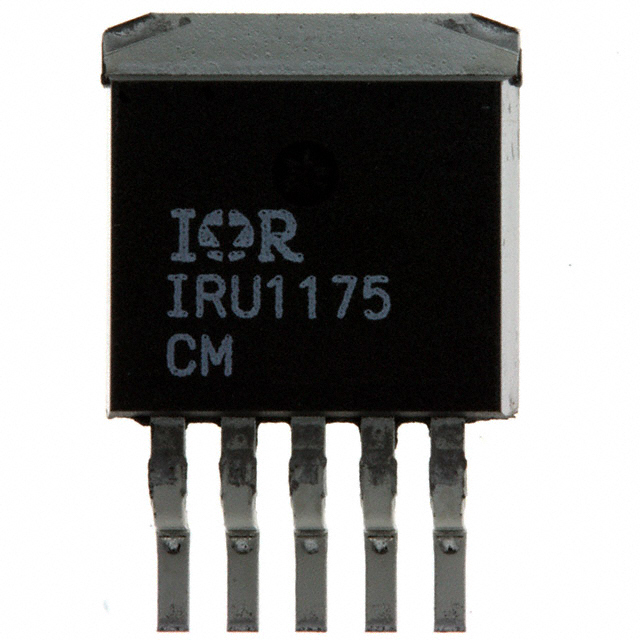

IRU1175CMTR

Obsolete

Infineon Technologies

IC REG LIN POS ADJ 7.5A TO263-5

Search across all available documentation for this part.

Obsolete

Infineon Technologies

IC REG LIN POS ADJ 7.5A TO263-5

Technical Specifications

Parameters and characteristics for this part

Specification	IRU1175CMTR

Current - Output	7.5 A
Current - Quiescent (Iq)	10 mA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	0 °C
Output Configuration	Positive
Output Type	Adjustable
Package / Case	TO-263-6, TO-263BA, D2PAK (5 Leads + Tab)
Protection Features	Over Current, Over Temperature
PSRR	70 dB
Supplier Device Package	TO-263-5
Voltage - Input (Max) [Max]	6 V
Voltage - Output (Max) [Max]	5.5 V
Voltage - Output (Min/Fixed)	1.25 V
Voltage Dropout (Max) [Max]	1.3 V

Part	Package / Case	Package / Case [y]	Package / Case [x]	Number of Regulators	Operating Temperature [Min]	Operating Temperature [Max]	Protection Features	Output Type	Voltage - Output (Max) [Max]	Voltage Dropout (Max) [Max]	Mounting Type	Output Configuration	PSRR	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed)	Supplier Device Package	Current - Output	Current - Quiescent (Iq)
Infineon Technologies IRU1175CSTR	8-SOIC	3.9 mm	0.154 in	1	0 °C	125 °C	Over Current Over Temperature	Adjustable	5.5 V	1.3 V	Surface Mount	Positive	70 dB	6 V	1.25 V	8-SOIC	7.5 A	10 mA
Infineon Technologies IRU1175CMTR	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA			1	0 °C	125 °C	Over Current Over Temperature	Adjustable	5.5 V	1.3 V	Surface Mount	Positive	70 dB	6 V	1.25 V	TO-263-5	7.5 A	10 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Linear Voltage Regulator IC Positive Adjustable 1 Output 7.5A TO-263-5

Technical documentation and resources

No documents available
