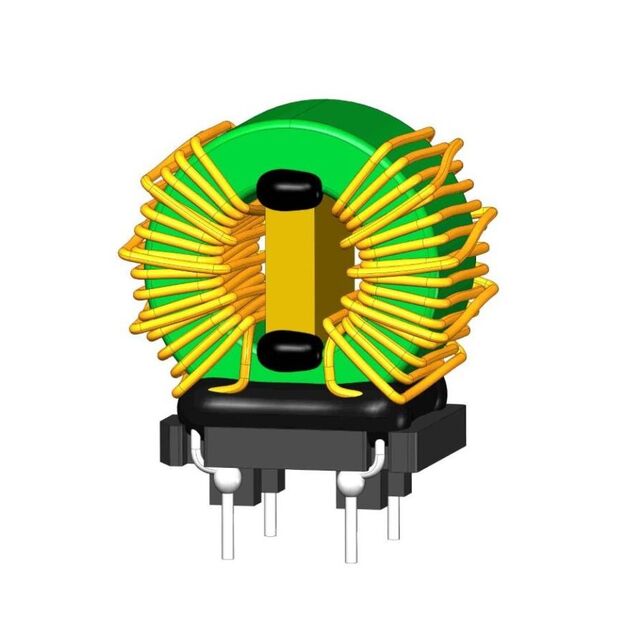

C201540A-222NHF
ActiveITG Electronics, Inc.
CMC 2.2MH 30% 30.0M 4.0A MAX.
C201540A-222NHF
ActiveITG Electronics, Inc.
CMC 2.2MH 30% 30.0M 4.0A MAX.
Description
General part information
C201540A-222NHF
2.2 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 4A DCR 30mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | C201540A-222NHF |
|---|---|
| Current Rating (Max) | 4 A |
| DC Resistance (DCR) (Max) | 30 mOhm |
| Filter Type | Power Line |
| Height (Max) | 1.004 in |
| Inductance | 2.2 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4 PC Pin, Vertical |
| Package Leads | 4 Leads |
| Package Name | Vertical |
| Size / Dimension Length | 0.925 in |
| Size / Dimension Width | 0.543 in |
| Voltage Rating - AC | 250 V |
