MB90F462APF-G-SPE1
ObsoleteInfineon Technologies
IC MCU 16BIT 64KB FLASH 64QFP
Deep-Dive with AI
Search across all available documentation for this part.
MB90F462APF-G-SPE1
ObsoleteInfineon Technologies
IC MCU 16BIT 64KB FLASH 64QFP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MB90F462APF-G-SPE1 |
|---|---|
| Connectivity | UART/USART |
| Core Processor | F²MC-16LX |
| Core Size | 16-Bit |
| Data Converters | A/D 8x8/10b |
| Mounting Type | Surface Mount |
| Number of I/O | 51 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | External |

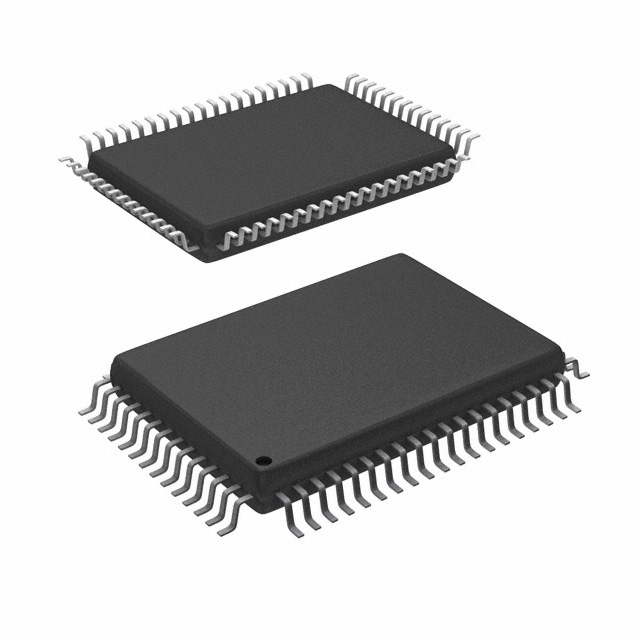

| Package / Case | 64-BQFP |
| Peripherals | POR, PWM, WDT |
| Program Memory Size | 64 KB |
| Program Memory Type | FLASH |
| RAM Size | 2K x 8 |
| Speed | 16 MHz |
| Supplier Device Package | 64-QFP (14x20) |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MB90F462 Series
F²MC-16LX F²MC-16LX MB90460 Microcontroller IC 16-Bit 16MHz 64KB (64K x 8) FLASH 64-QFP (14x20)
