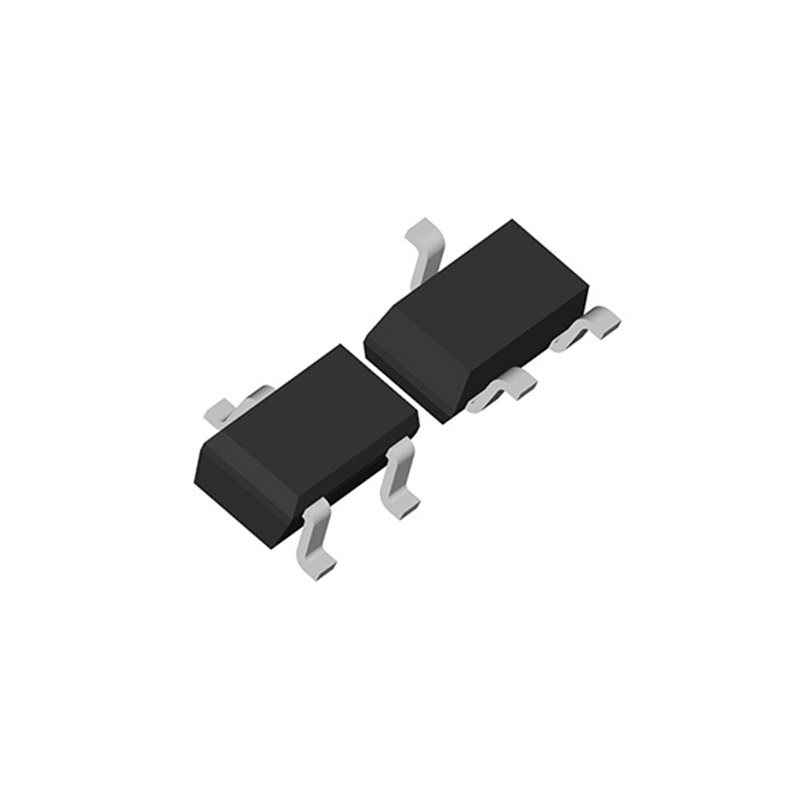

Specification	AM2336N

Current - Continuous Drain (Id) (Ta)	5.3 A
Drain to Source Voltage (Vdss)	30 V
Drive Voltage (Max Rds On)	2.5 V
Drive Voltage (Min Rds On)	4.5 V
FET Type	N-Channel
Gate Charge (Max)	8 nC
Input Capacitance (Ciss) (Max)	449 pF
Mounting Type	Surface Mount
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-55 °C
Package / Case	TO-236-3, SOT-23-3, SC-59, SOT-23
Package Name	SOT-23
Power Dissipation (Max)	1.3 W
Rds On (Max)	64 mOhm
Technology	MOSFET (Metal Oxide)
Vgs (Max)	12 V
Vgs(th) (Max)	400 mV
