AB-FH01208-19712-8A1-12S
ActiveAmerican Bright Optoelectronics Corporation

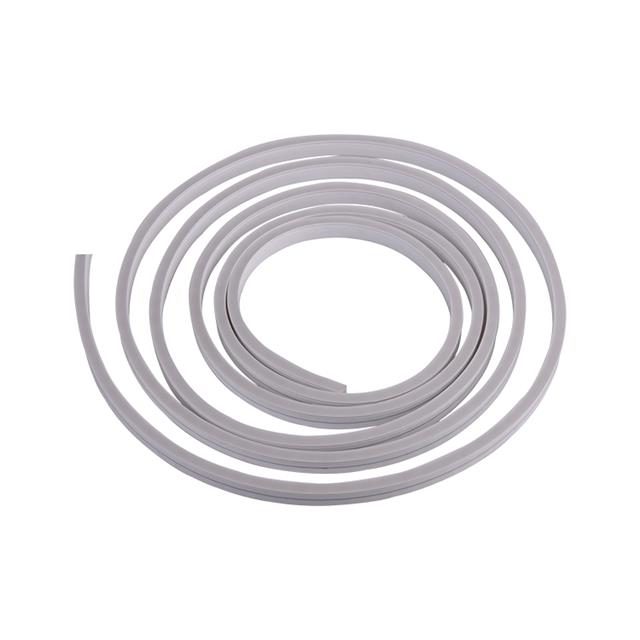

LED MOD AB-FH RGBW LNR STRIP
AB-FH01208-19712-8A1-12S
ActiveAmerican Bright Optoelectronics Corporation
LED MOD AB-FH RGBW LNR STRIP
Description
General part information
AB-FH01208-19712-8A1-12S
LED Lighting COBs Engines Modules LED Module AB-FH Red, Green, Blue, White (RGBW) Linear Light Strip, Flexible
Technical Specifications
Parameters and characteristics for this part
| Specification | AB-FH01208-19712-8A1-12S |
|---|---|
| Color | White (RGBW), Green, Red, Blue |
| Configuration | Flexible, Linear Light Strip |
| CRI (Color Rendering Index) | 80 |
| Features | IP67 |
| Height | 6 mm |
| Lens Type | Flat |
| Size / Dimension Length | 304.8 mm |
| Size / Dimension Width | 12 mm |
| Temperature - Test | 25 °C |
| Type | LED Module |
| Voltage - Forward (Vf) (Typ) (Blue) | 12 V |
| Voltage - Forward (Vf) (Typ) (Green) | 12 V |
| Voltage - Forward (Vf) (Typ) (Red) | 12 V |
| Voltage - Forward (Vf) (Typ) Color | White, Green, Blue, Red |
| Wavelength (Blue) | 445 nm |
| Wavelength (Green) | 523 nm |
| Wavelength (Red) | 628 nm |
| Wavelength Colors | Blue, Green, Red |
