FMCA1239-36
ActiveFairview Microwave

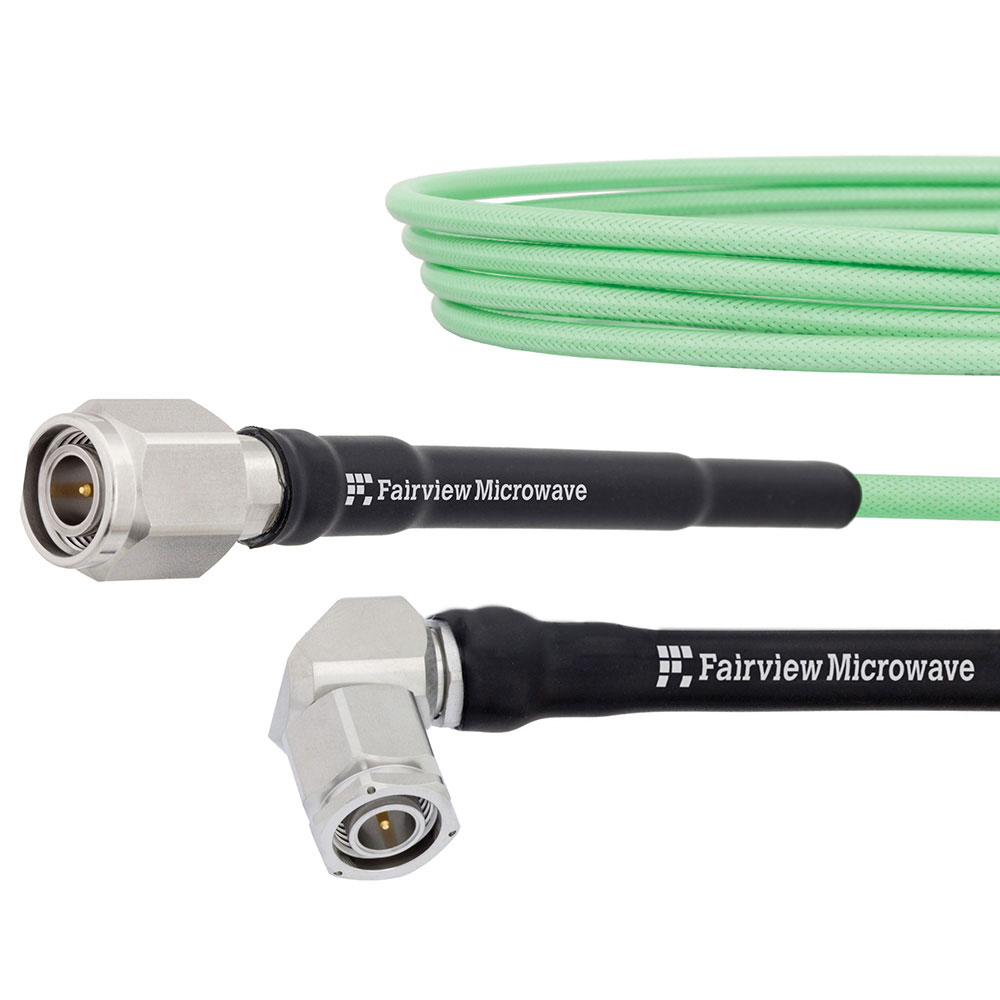

CBL ASSY TNCPLUG-TNCPLUG 36
FMCA1239-36
ActiveFairview Microwave
CBL ASSY TNCPLUG-TNCPLUG 36
Description
General part information
FMCA1239-36
Cable Assembly Coaxial
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA1239-36 |
|---|---|
| 1st Connector | TNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | Right Angle, TNC Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LL142 |
| Color | Green |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 18 GHz |
| Length | 36 in |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | TNC |
