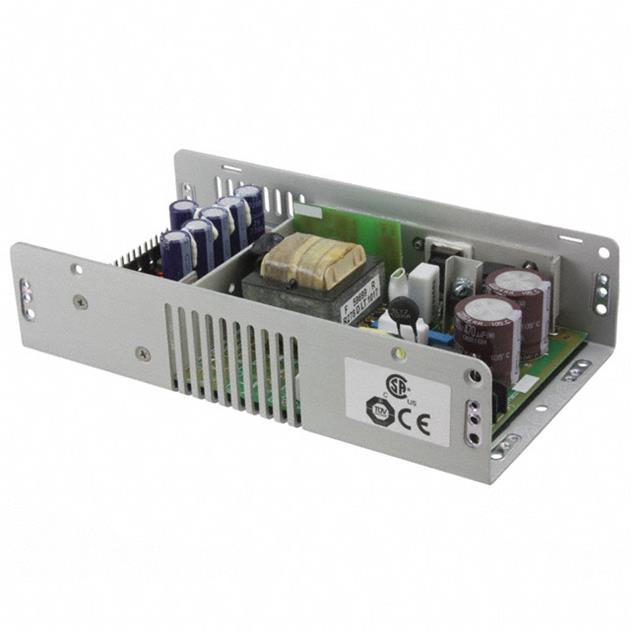

MAP130-4010G

Active

Bel Power Solutions

AC/DC CNVRT 5V 12V -5V -12V 130W

Search across all available documentation for this part.

Active

Bel Power Solutions

AC/DC CNVRT 5V 12V -5V -12V 130W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MAP130-4010G	MAP130 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	cCSAus, CE, CB	cCSAus, CE, CB
Current - Output 1	20 A	6.2 - 20 A
Current - Output 2	5 A	5 A
Current - Output 4	3 A	1 - 3 A
Efficiency	80 %	80 %
Features	Remote Sense, Universal Input, Adjustable Output	Remote Sense, Universal Input, Adjustable Output
Minimum Load Required	True	True
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	4	1 - 4
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	0 °C	0 °C
Power (Watts)	130 W	130 W
Size / Dimension [x]	215.9 mm	215.9 mm
Size / Dimension [x]	8.5 in	8.5 in
Size / Dimension [y]	114.3 mm	114.3 mm
Size / Dimension [y]	4.5 in	4.5 in
Size / Dimension [z]	2 "	2 "
Size / Dimension [z]	50.8 mm	50.8 mm
Type	Open Frame	Open Frame
Voltage - Input [Max]	264 VAC, 132 VAC	132 - 264 VAC
Voltage - Input [Min]	90 VAC, 175 VAC	90 - 175 VAC
Voltage - Isolation	2.6 kV	2.6 kV
Voltage - Output 1	5 V	5 - 24 V
Voltage - Output 2	12 V	12 V
Voltage - Output 3	-5 V	-12 - -5 V
Voltage - Output 4	-	12 V

AC/DC CNVRT 5V 12V -5V -12V 130W

Part	Current - Output 1	Features	Current - Output 2	Efficiency	Number of Outputs	Power (Watts)	Operating Temperature [Max]	Voltage - Output 2	Type	Mounting Type	Applications	Current - Output 4	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Approval Agency	Voltage - Output 1	Voltage - Isolation	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output 3	Voltage - Output 4
Bel Power Solutions MAP130-4010G	20 A	Adjustable Output, Remote Sense, Universal Input	5 A	80 %	4	130 W	70 °C	12 V	Open Frame	Chassis Mount	ITE (Commercial)	3 A	2 "	114.3 mm	50.8 mm	215.9 mm	8.5 in	4.5 in	CB, cCSAus, CE	5 V	2.6 kV	132 VAC, 264 VAC	90 VAC, 175 VAC	-5 V
Bel Power Solutions MAP130-4002G	20 A	Adjustable Output, Remote Sense, Universal Input	5 A	80 %	4	130 W	70 °C	12 V	Open Frame	Chassis Mount	ITE (Commercial)	1 A	2 "	114.3 mm	50.8 mm	215.9 mm	8.5 in	4.5 in	CB, cCSAus, CE	5 V	2.6 kV	132 VAC, 264 VAC	90 VAC, 175 VAC	-12 V	12 V
Bel Power Solutions MAP130-1012	12 A	Adjustable Output, Remote Sense, Universal Input		80 %	1	130 W	70 °C		Open Frame	Chassis Mount	ITE (Commercial)		2 "	114.3 mm	50.8 mm	215.9 mm	8.5 in	4.5 in	CB, cCSAus, CE	12 V	2.6 kV	132 VAC, 264 VAC	90 VAC, 175 VAC
Bel Power Solutions MAP130-1024G	6.2 A	Adjustable Output, Remote Sense, Universal Input		80 %	1	130 W	70 °C		Open Frame	Chassis Mount	ITE (Commercial)		2 "	114.3 mm	50.8 mm	215.9 mm	8.5 in	4.5 in	CB, cCSAus, CE	24 V	2.6 kV	132 VAC, 264 VAC	90 VAC, 175 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 4 Output 5V 12V -5V -12V 90 ~ 132 VAC, 175 ~ 264 VAC Input
