SPLFA30F-24
ObsoleteCosel USA, Inc.
AC/DC CONVERTER 24V
SPLFA30F-24
ObsoleteCosel USA, Inc.
AC/DC CONVERTER 24V
Description
General part information

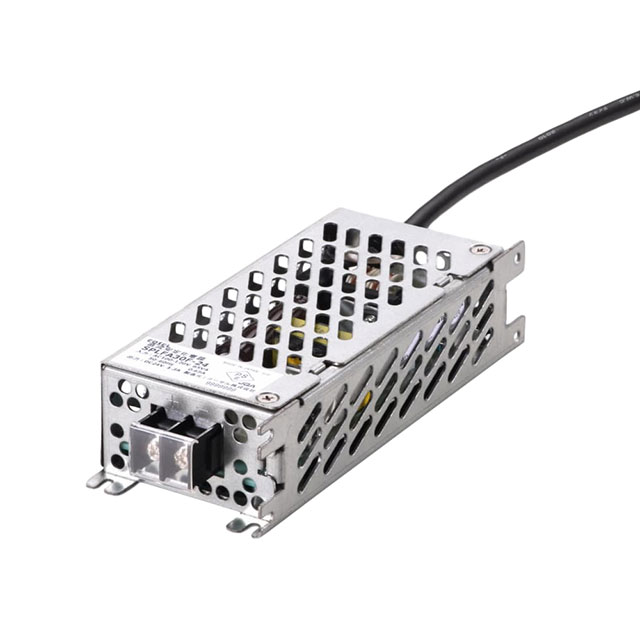

SPLFA30F-24
Open Frame AC DC Converters 1 Output 24V 85 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | SPLFA30F-24 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | PSE |
| Current - Output 1 | 1.3 A |
| Efficiency | 83 % |
| Minimum Load Required | No |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Size / Dimension Height | 1.42 in |
| Size / Dimension Length | 5.91 in |
| Size / Dimension Width | 2.4 in |
| Type | Open Frame |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 24 V |
