TXR40AZ00-1608AI

Active

TE Connectivity Aerospace, Defense and Marine

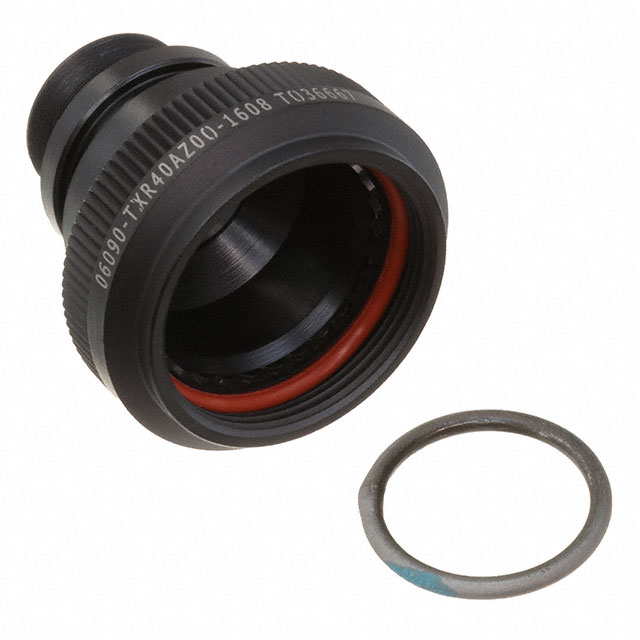

CONN BACKSHELL ADPT SZ17 E BLK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TXR40AZ00-1608AI

Active

TE Connectivity Aerospace, Defense and Marine

CONN BACKSHELL ADPT SZ17 E BLK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 60.38

Description

General part information

TXR40AZ00 Series

Black Connector Backshell, Heat Shrink Adapter M25x1 17, E

Documents

Technical documentation and resources

Datasheet

Specification	TXR40AZ00-1608AI	TXR40AZ00 Series

Cable Exit	180 °	180 °
Color	Black	Black
Diameter - Outside	-	29 mm
Diameter - Outside [diameter]	1.279 in	0.709 - 1.713 "
Diameter - Outside [diameter]	32.49 mm	1.142 - 43.5 mm
Features	Tinel Lock	Tinel Lock
For Use With/Related Products	MIL-DTL-38999 Series III, IV	MIL-DTL-38999 Series III, IV
Includes	1 pcs, 1 pcs, 1 pcs, 1 pcs	1 pcs
Includes	-	1 Braid, 2 O-Rings, 2 pc Backshell, 1 Tinel Ring, 1 O-Ring, 2 Braids, 1 Backshell
Ingress Protection	Environment Resistant	Environment Resistant
Material	Aluminum Alloy	Aluminum Alloy
Plating	Zinc Nickel	Zinc Nickel
Shell Size - Insert	17, E	G, J, 17, E, B, D, H, C, F
Shell Size - Insert	-	11 - 25
Shell Size - Insert	-	9
Shell Size - Insert	-	A
Shielding	Shielded	Shielded
Thread Size	M25x1	M31x1, M37x1, M25x1, M15x1, M34x1, M18x1, M28x1, M12x1
Type	Backshell, Heat Shrink Adapter	Backshell, Heat Shrink Adapter

Part	Features	Includes	Color	Shielding	Shell Size - Insert	Shell Size - Insert	Type	Plating	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Ingress Protection	Cable Exit	Thread Size	For Use With/Related Products	Material	Includes	Diameter - Outside [diameter]
TE Connectivity Aerospace, Defense and Marine TXR40AZ00-2014AI	Tinel Lock	1 pcs, 1 pcs, 1 pcs, 1 pcs	Black	Shielded	21	G	Backshell, Heat Shrink Adapter	Zinc Nickel	1.457 "	37 mm	Environment Resistant	180 °	M31x1	MIL-DTL-38999 Series III, IV	Aluminum Alloy
TE Connectivity Aerospace, Defense and Marine TXR40AZ00-2412AI	Tinel Lock	1 pcs, 1 pcs, 1 pcs, 1 pcs	Black	Shielded	25	J	Backshell, Heat Shrink Adapter	Zinc Nickel	1.713 "	43.5 mm	Environment Resistant	180 °	M37x1	MIL-DTL-38999 Series III, IV	Aluminum Alloy
TE Connectivity Aerospace, Defense and Marine TXR40AZ00-1612AI	Tinel Lock	1 pcs, 1 pcs, 1 pcs, 1 pcs	Black	Shielded		17, E	Backshell, Heat Shrink Adapter	Zinc Nickel	1.279 in	32.49 mm	Environment Resistant	180 °	M25x1	MIL-DTL-38999 Series III, IV	Aluminum Alloy
TE Connectivity Aerospace, Defense and Marine TXR40AZ00-1008BI	Tinel Lock		Black	Shielded	11	B	Backshell, Heat Shrink Adapter	Zinc Nickel	0.827 in	21 mm	Environment Resistant	180 °	M15x1	MIL-DTL-38999 Series III, IV	Aluminum Alloy	1 Braid, 1 Tinel Ring, 2 O-Rings, 2 pc Backshell
TE Connectivity Aerospace, Defense and Marine TXR40AZ00-1407BI	Tinel Lock	1 pcs, 1 pcs, 1 pcs, 1 pcs	Black	Shielded	15	D	Backshell, Heat Shrink Adapter	Zinc Nickel		1.142 in	Environment Resistant	180 °		MIL-DTL-38999 Series III, IV	Aluminum Alloy		29 mm
TE Connectivity Aerospace, Defense and Marine TXR40AZ00-2216BI	Tinel Lock	1 pcs, 1 pcs, 1 pcs, 1 pcs	Black	Shielded	23	H	Backshell, Heat Shrink Adapter	Zinc Nickel	1.575 in	40 mm	Environment Resistant	180 °	M34x1	MIL-DTL-38999 Series III, IV	Aluminum Alloy
TE Connectivity Aerospace, Defense and Marine TXR40AZ00-1007BI	Tinel Lock	1 pcs, 1 pcs, 1 pcs, 1 pcs	Black	Shielded	11	B	Backshell, Heat Shrink Adapter	Zinc Nickel	0.827 in	21 mm	Environment Resistant	180 °	M15x1	MIL-DTL-38999 Series III, IV	Aluminum Alloy
TE Connectivity Aerospace, Defense and Marine TXR40AZ00-2210BI	Tinel Lock	1 pcs, 1 pcs, 1 pcs, 1 pcs	Black	Shielded	23	H	Backshell, Heat Shrink Adapter	Zinc Nickel	1.575 in	40 mm	Environment Resistant	180 °	M34x1	MIL-DTL-38999 Series III, IV	Aluminum Alloy
TE Connectivity Aerospace, Defense and Marine TXR40AZ00-1007AI	Tinel Lock	1 pcs, 1 pcs, 1 pcs, 1 pcs	Black	Shielded	11	B	Backshell, Heat Shrink Adapter	Zinc Nickel	0.827 in	21 mm	Environment Resistant	180 °	M15x1	MIL-DTL-38999 Series III, IV	Aluminum Alloy
TE Connectivity Aerospace, Defense and Marine TXR40AZ00-1406AI	Tinel Lock	1 pcs, 1 pcs, 1 pcs, 1 pcs	Black	Shielded	15	D	Backshell, Heat Shrink Adapter	Zinc Nickel		1.142 in	Environment Resistant	180 °		MIL-DTL-38999 Series III, IV	Aluminum Alloy		29 mm
