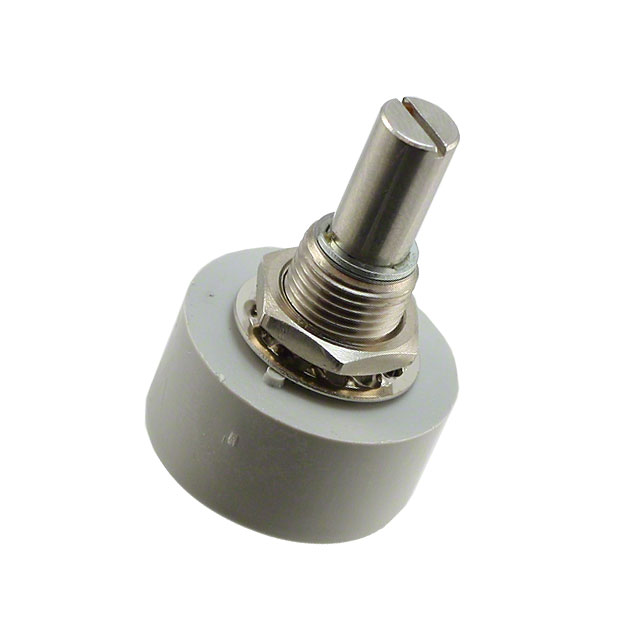

6187R10KL1.0LF
ActiveTT Electronics/BI
POT 10K OHM 1W PLASTIC LINEAR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6187R10KL1.0LF
ActiveTT Electronics/BI
POT 10K OHM 1W PLASTIC LINEAR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 6187R10KL1.0LF | 6187R Series |
|---|---|---|
| Actuator Diameter | - | 6.35 mm |
| Actuator Diameter | - | 0.25 in |
| Actuator Length [x] | 0.874 in | 0.874 in |
| Actuator Length [x] | 22.2 mm | 22.2 mm |
| Actuator Type | Slotted | Slotted |
| Adjustment Type | User Defined | User Defined |
| Built in Switch | False | False |
| Bushing Thread | 3/8-32 | 3/8-32 |
| Number of Gangs | 1 | 1 |
| Number of Turns | 1 | 1 |
| Power (Watts) | 1 W | 1 W |
| Resistance (Ohms) | 10k | 10k |
| Resistance (Ohms) | - | 5 - 50 kOhms |
| Resistive Material | Conductive Plastic | Conductive Plastic |
| Rotation | Continuous | Continuous |
| Size - Body [diameter] | 0.874 in | 0.874 in |
| Size - Body [diameter] | 22.2 mm | 22.2 mm |
| Taper | Linear | Linear |
| Temperature Coefficient | -400 ppm/°C | -400 ppm/°C |
| Termination Style | Solder Turret | Solder Turret |
| Tolerance | 10 % | 10 % |
6187R Series
POT 5K OHM 1W PLASTIC LINEAR
| Part | Number of Gangs | Built in Switch | Size - Body [diameter] | Size - Body [diameter] | Resistive Material | Actuator Length [x] | Actuator Length [x] | Rotation | Bushing Thread | Temperature Coefficient | Actuator Type | Number of Turns | Power (Watts) | Taper | Termination Style | Adjustment Type | Tolerance | Resistance (Ohms) | Resistance (Ohms) | Actuator Diameter | Actuator Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TT Electronics/BI 6187R5KL1.0LF | 1 | 0.874 in | 22.2 mm | Conductive Plastic | 0.874 in | 22.2 mm | Continuous | 3/8-32 | -400 ppm/°C | Slotted | 1 | 1 W | Linear | Solder Turret | User Defined | 10 % | 5 kOhms | ||||
TT Electronics/BI 6187R5KL1.0ST | 1 | 0.874 in | 22.2 mm | Conductive Plastic | 0.874 in | 22.2 mm | Continuous | 3/8-32 | -400 ppm/°C | Slotted | 1 | 1 W | Linear | Solder Turret | User Defined | 10 % | 5 kOhms | ||||
TT Electronics/BI 6187R10KL1.0LF | 1 | 0.874 in | 22.2 mm | Conductive Plastic | 0.874 in | 22.2 mm | Continuous | 3/8-32 | -400 ppm/°C | Slotted | 1 | 1 W | Linear | Solder Turret | User Defined | 10 % | 10k | ||||
TT Electronics/BI 6187R20KL1.0LF | 1 | 0.874 in | 22.2 mm | Conductive Plastic | 0.874 in | 22.2 mm | Continuous | 3/8-32 | -400 ppm/°C | Slotted | 1 | 1 W | Linear | Solder Turret | User Defined | 10 % | 20 kOhms | 6.35 mm | 0.25 in | ||
TT Electronics/BI 6187R50KL1.0LF | 1 | 0.874 in | 22.2 mm | Conductive Plastic | 0.874 in | 22.2 mm | Continuous | 3/8-32 | -400 ppm/°C | Slotted | 1 | 1 W | Linear | Solder Turret | User Defined | 10 % | 50 kOhms | 6.35 mm | 0.25 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 28.03 | |
| 10 | $ 22.45 | |||
| 25 | $ 20.54 | |||
| 50 | $ 19.19 | |||
| 100 | $ 17.92 | |||
| 250 | $ 16.36 | |||
| 500 | $ 15.26 | |||
Description
General part information
6187R Series
10k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Conductive Plastic 1W Solder Turret
