OCP-PCTB116/E

Active

Lumex Opto/Components Inc.

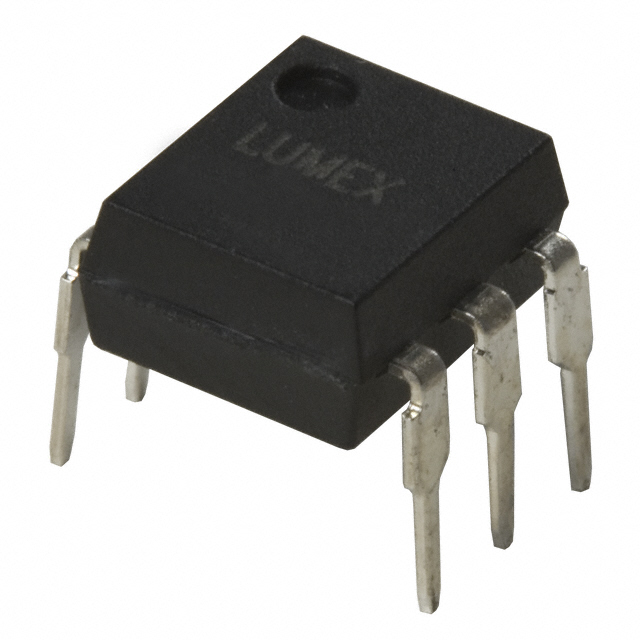

OPTOISO 5KV TRANS W/BASE 6DIP

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

OPTOISO 5KV TRANS W/BASE 6DIP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	OCP-PCTB116/E	OCP-PCTB116 Series

Current - DC Forward (If) (Max)	50 mA	50 mA
Current - Output / Channel	50 mA	50 mA
Current Transfer Ratio (Max)	600 %	600 %
Current Transfer Ratio (Min) [Min]	60 %	60 %
Input Type	DC	DC
Mounting Type	Through Hole	Through Hole, Surface Mount
Number of Channels	1	1
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Package / Case	6-DIP	6-DIP, 6-SMD, Gull Wing
Package / Case	0.3 in	0.3 in
Package / Case	7.62 mm	7.62 mm
Rise / Fall Time (Typ) [custom]	5 µs	5 µs
Rise / Fall Time (Typ) [custom]	4 µs	4 µs
Supplier Device Package	6-DIP	6-DIP, 6-SMD
Vce Saturation (Max) [Max]	300 mV	300 mV
Voltage - Output (Max) [Max]	60 V	60 V

OPTOISO 5KV TRANS W/BASE 6DIP

Part	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Supplier Device Package	Current - Output / Channel	Current Transfer Ratio (Max)	Current - DC Forward (If) (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Package / Case	Number of Channels	Current Transfer Ratio (Min) [Min]	Mounting Type	Voltage - Output (Max) [Max]	Vce Saturation (Max) [Max]	Input Type
Lumex Opto/Components Inc. OCP-PCTB116/E	5 µs	4 µs	6-DIP	50 mA	600 %	50 mA	100 °C	-30 ░C	6-DIP	0.3 in	7.62 mm	1	60 %	Through Hole	60 V	300 mV	DC
Lumex Opto/Components Inc. OCP-PCTB116/E-TR	5 µs	4 µs	6-SMD	50 mA	600 %	50 mA	100 °C	-30 ░C	6-SMD, Gull Wing			1	60 %	Surface Mount	60 V	300 mV	DC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Optoisolator Transistor with Base Output 5000Vrms 1 Channel 6-DIP
