917727-1

Active

TE Connectivity AMP Connectors

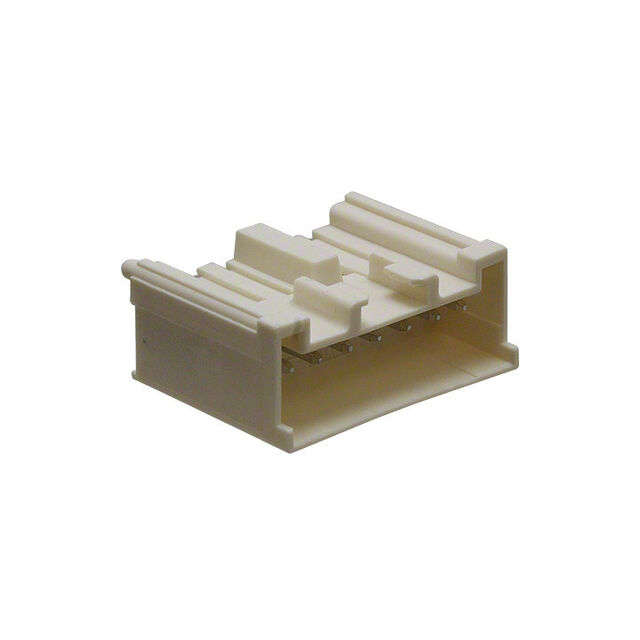

CONN HEADER VERT 7POS 2.5MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 7POS 2.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	917727-1

Applications	General Purpose
Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.185 in
Contact Length - Mating	4.7 mm
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Holder
Features	Board Guide
Insulation Color	Natural
Insulation Height	15.29 mm
Insulation Height	0.602 in
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mated Stacking Heights [z]	19.2 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	7
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Overall Contact Length	15.9 mm
Overall Contact Length	0.626 in
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Kinked Pin, Solder
Voltage Rating	50 V

CONN HEADER VERT 7POS 2.5MM

Part	Contact Finish - Post	Features	Number of Rows	Material Flammability Rating	Mated Stacking Heights [z]	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Current Rating (Amps)	Fastening Type	Contact Length - Mating	Contact Length - Mating	Contact Shape	Contact Type	Number of Positions	Mounting Type	Applications	Termination	Pitch - Mating	Pitch - Mating	Insulation Material	Insulation Color	Style	Contact Material	Contact Length - Post	Contact Length - Post [x]	Insulation Height	Insulation Height	Connector Type	Overall Contact Length	Overall Contact Length	Number of Positions Loaded	Voltage Rating
TE Connectivity AMP Connectors 917727-1	Tin	Board Guide	1	UL94 V-0	19.2 mm	-30 ░C	105 ░C	Shrouded - 4 Wall	3 A	Latch Holder	0.185 in	4.7 mm	Square	Male Pin	7	Through Hole	General Purpose	Kinked Pin, Solder	2.5 mm	0.098 in	Polyamide (PA66), Nylon 6/6, Glass Filled	Natural	Board to Cable/Wire	Copper Alloy	3.2 mm	0.126 in	15.29 mm	0.602 in	Header	15.9 mm	0.626 in	All	50 V
