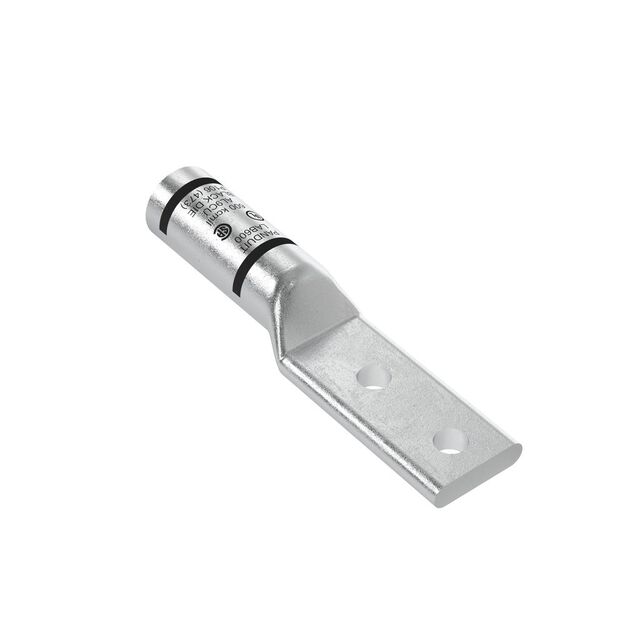

LAB600-12-24
UnknownPanduit Corp
CONN TERM RECT TONG 600 MCM #1/2
LAB600-12-24
UnknownPanduit Corp
CONN TERM RECT TONG 600 MCM #1/2
Description
General part information
LAB600-12-24
Terminal Connector Rectangular Standard 600MCM (kcmil) 1/2 Stud
Technical Specifications
Parameters and characteristics for this part
| Specification | LAB600-12-24 |
|---|---|
| Color | Black |
| Contact Finish | Tin |
| Contact Material | Aluminum |
| Diameter - Barrel ID | 0.92 in |
| Diameter - Barrel OD | 1.44 in |
| Diameter - Ring ID | 0.53 in |
| Insulation | Non-Insulated |
| Length - Overall | 7.56 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 0.5 Stud |
| Tab Thickness | 0.5 in |
| Terminal Style | Two Stud Holes |
| Terminal Type | Standard |
| Termination | Crimp |
| Width - Outer Edges | 1.73 in |
| Wire Gauge (MCM) | 600 MCM |
