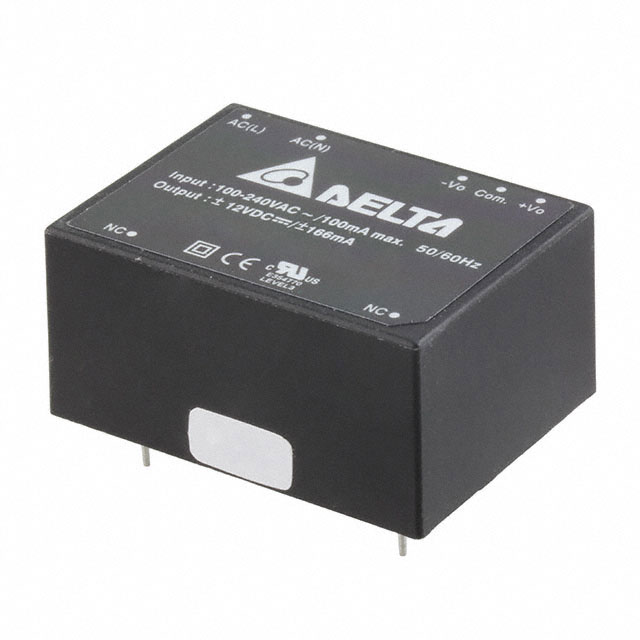

AA04D1212A

Active

Delta Electronics

AC/DC CONVERTER +/-12V 4W

Search across all available documentation for this part.

Active

Delta Electronics

AC/DC CONVERTER +/-12V 4W

Technical Specifications

Parameters and characteristics commom to parts in this series

AC/DC CONVERTER +/-12V 4W

Part	Current - Output (Max)	Current - Output (Max)	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Features	Weight	Weight	Applications	Approval Agency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Line Regulation	Standard Number	Mounting Type	Power (Watts)	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Load Regulation	Efficiency	Type	Current - Output (Max)
Delta Electronics AA04D1212A	166 mA	166 mA	12 V	85 VAC, 120 VDC	264 VAC, 370 VDC	Universal Input	0.057 lb	25.85 g	ITE (Commercial)	CE, UL	0.67 in	1.06 in	1.44 "	36.5 mm	27 mm	17.1 mm	0.5 %	60950-1	Through Hole	4 W	2	60 °C	-25 °C	7-DIP Module	0.5 %	77 %	Enclosed
Delta Electronics AA04D1515A		133 mA	15 V	85 VAC, 120 VDC	264 VAC, 370 VDC	Universal Input	0.057 lb	25.85 g	ITE (Commercial)	CE, UL	0.67 in	1.06 in	1.44 "	36.5 mm	27 mm	17.1 mm	0.5 %	60950-1	Through Hole	4 W	2	60 °C	-25 °C	7-DIP Module	0.5 %	77 %	Enclosed	133 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	50	$ 17.50

General part information

Enclosed AC DC Converters 2 Output 12V 166mA, 166mA 85 ~ 264 VAC, 120 ~ 370 VDC Input
