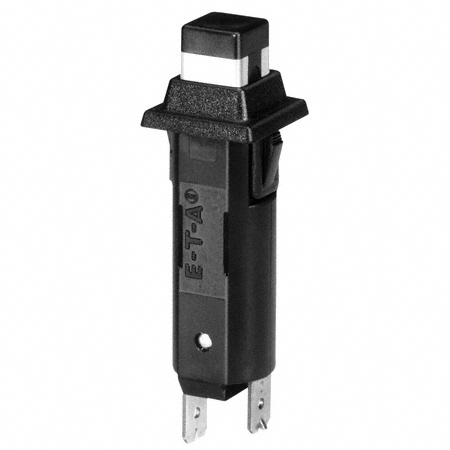

1110-F112-P1M1-3.5A

Active

E-T-A

CIRCUIT BREAKERS SINGLE POLE SWITCH/THERMAL CIRCUIT BREAKER (S-TYPE TO CBE TO EN 60934) WITH TEASE-FREE, TRIP-FREE, SNAP ACTION MECHANISM. DESIGNED FOR SNAP-IN PANEL MOUNTING UTILISING ROUND HOLE OR INDUSTRY STANDARD FUSE-HOLDER CUT-OUT DIMENSIONS. FEATU

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

1110-F112-P1M1-3.5A

Active

E-T-A

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1110-F112-P1M1-3.5A	1110-Fx12-P1M1 Series

Actuator Type	Push-Push	Push-Push
Approval Agency	CSA C22.2 No 235, UL1077, IEC 60934	CSA C22.2 No 235, UL1077, IEC 60934
Breaker Type	Thermal	Thermal
Current Rating (Amps)	3.5 A	0.2 - 3.5 A
Illumination	None	None
Number of Poles	1	1
Voltage Rating - AC	250 V	250 V
Voltage Rating - DC	50 VDC	50 VDC

1110-Fx12-P1M1 Series

Circuit Breakers Single pole switch/thermal circuit breaker (S-type TO CBE to EN 60934) with tease-free, trip-free, snap action mechanism. Designed for snap-in panel mounting utilising round hole or industry standard fuse-holder cut-out dimensions. Featu

Part	Voltage Rating - AC	Breaker Type	Number of Poles	Approval Agency	Actuator Type	Illumination	Current Rating (Amps)	Voltage Rating - DC
E-T-A 1110-F212-P1M1-0.2A	250 V	Thermal	1	CSA C22.2 No 235, IEC 60934, UL1077	Push-Push	None	0.2 A	50 VDC
E-T-A 1110-F112-P1M1-3.5A	250 V	Thermal	1	CSA C22.2 No 235, IEC 60934, UL1077	Push-Push	None	3.5 A	50 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 19.82
Sager	N/A	1	$ 26.40
		16	$ 25.55
		63	$ 23.64
		165	$ 17.54
		469	$ 15.01
		938	$ 14.60
		1876	$ 14.41
