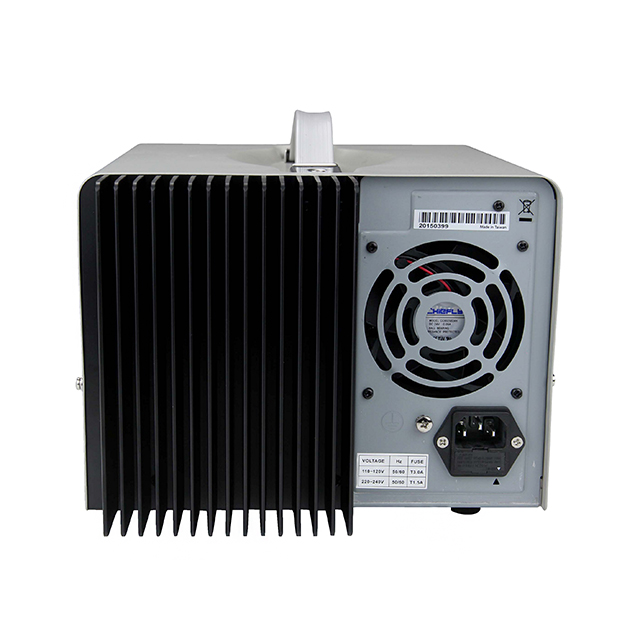

1415
ObsoleteGLOBAL SPECIALTIES
DC PWR SPLY DUAL 30V/3A:5V/3A
1415
ObsoleteGLOBAL SPECIALTIES
DC PWR SPLY DUAL 30V/3A:5V/3A
Description
General part information
1415
0 ~ 30VDC Output Bench (AC to DC) Power Supply LED 0 ~ 3A Output 105W Features Constant Current and Constant Voltage Indicators
Technical Specifications
Parameters and characteristics for this part
| Specification | 1415 |
|---|---|
| Accuracy - Device Types | Voltmeter, Ammeter |
| Accuracy (Digits) | 2 digits |
| Accuracy (Percent) | 0.5 % |
| Current - Output (Max) | 3 A |
| Current - Output (Min) | 0 A |
| Current Regulation - Line (Absolute) | 2 mA |
| Current Regulation - Line (Percentage) | 0.05 % |
| Current Regulation - Load | 15 mA |
| Display Type | LED |
| Features | Constant Current and Constant Voltage Indicators, Constant Current, Constant Voltage Indicators |
| Number of Characters | 3 characters |
| Number of Characters (Secondary) | 2 characters |
| Number of Outputs | 2 |
| Power (Watts) | 105 W |
| Ripple Voltage (RMS) | 0.4 mV |
| Size / Dimension Height | 6.7 in |
| Size / Dimension Length | 12.2 in |
| Size / Dimension Width | 9 in |
| Type | Bench (AC to DC) |
| Voltage - Output (Max) | 30 V |
| Voltage - Output (Min) | 0 V |
| Voltage - Supply | 120 VAC, 240 VAC |
| Voltage - Supply | 120VAC, 240VAC |
| Voltage Regulation - Line (Absolute) | 2 mV |
| Voltage Regulation - Line (Percentage) | 0.05 % |
| Voltage Regulation - Load (Percentage) | 0.05 % |
| Voltage Regulation - Load (Voltage Offset) | 32 mV |
