SMC024-0871
ActiveFairview Microwave
CONN PLUG SOLDER/SOLDER 2.4MM
SMC024-0871
ActiveFairview Microwave
CONN PLUG SOLDER/SOLDER 2.4MM
Description
General part information
SMC024-0871

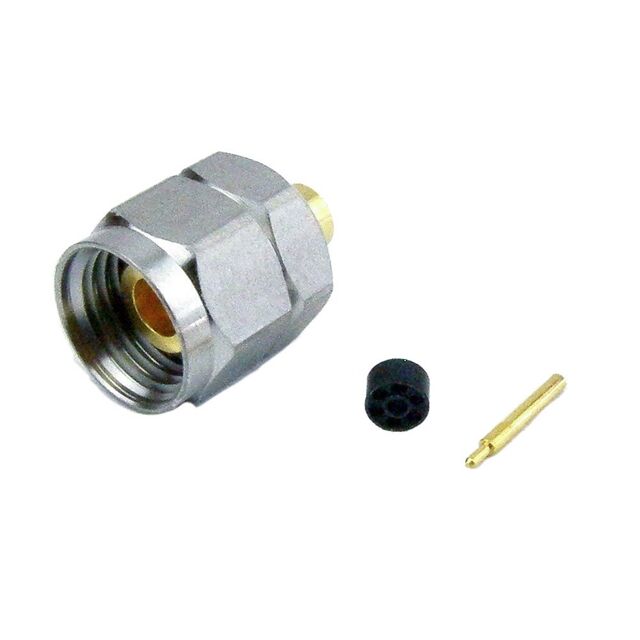

2.4mm (APC-2.4, OS-50) Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | SMC024-0871 |
|---|---|
| Body Material | Stainless Steel |
| Cable Group | RG-405 |
| Cable Group Diameter (Semi Rigid) | 0.086 in |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Plug Diameter | 2.4 mm |
| Connector Style | APC-2.4, OS-50 |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Fastening Type | Threaded |
| Frequency - Max | 50 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mating Cycles | 500 cycles |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -55 °C |
| Shield Termination | Solder |
