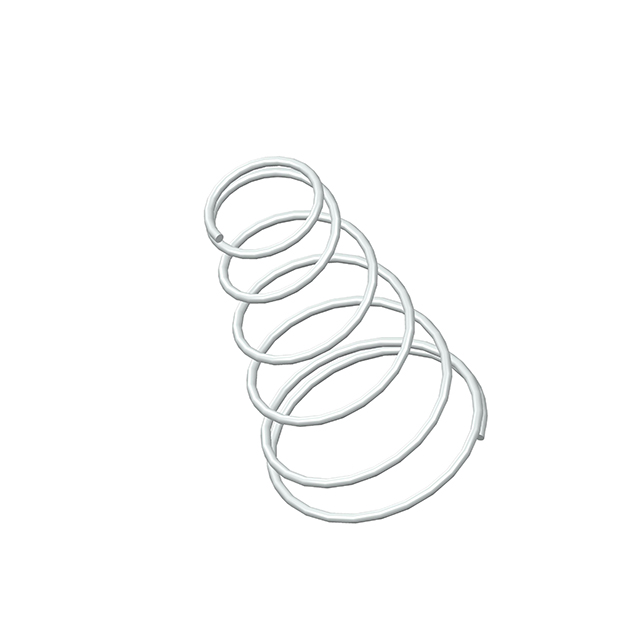

TA-2348CS
ActiveCentury Spring Corp
LO= 1.875, SO= 1, W= 0.08
TA-2348CS
ActiveCentury Spring Corp
LO= 1.875, SO= 1, W= 0.08
Description
General part information
TA-2348CS
LO= 1.875, SO= 1, W= 0.08
Technical Specifications
Parameters and characteristics for this part
| Specification | TA-2348CS |
|---|---|
| Diameter - Inside | 0.84 in |
| Diameter - Large Outside | 1.875 in |
| Diameter - Small Outside | 1 in |
| End Style | Closed |
| Finish | None |
| Free Length | 3.13 in |
| Material | Stainless Steel |
| Rate (lbs/in) | 4.8 lbs/in |
| Type | Tapered |
| Wire Diameter | 0.08 in |
