XQAGRN-00-0000-000000Z01

Active

Cree LED

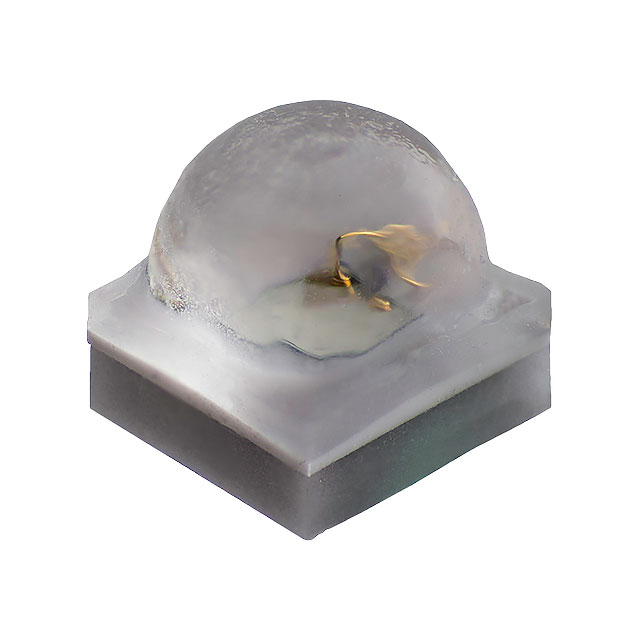

LED XLAMP XQA GREEN 528NM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsXQ-E LEDs Datasheet Datasheet

XQAGRN-00-0000-000000Z01

Active

Cree LED

LED XLAMP XQA GREEN 528NM SMD

Deep-Dive with AI

DocumentsXQ-E LEDs Datasheet Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2000	$ 0.36

Description

General part information

XQAGRN Series

LED Lighting Color Xlamp® XQ-A Green 528nm (520nm ~ 535nm) 0606 (1616 Metric)

Documents

Technical documentation and resources

XQ-E LEDs Datasheet

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XQAGRN-00-0000-000000Z01	XQAGRN Series

Color	Green	Green
Current - Max [Max]	250 mA	250 - 300 mA
Current - Test	175 mA	175 mA
Height - Seated (Max) [Max]	1.73 mm	1.73 mm
Height - Seated (Max) [Max] [z]	0.068 "	0.068 "
Lumens/Watt @ Current - Test	64 lm/W	64 - 120 lm/W
Luminous Flux @ Current/Temperature	38 lm	38 - 65 lm
Luminous Flux @ Current/Temperature [Max]	40 lm	40 - 67 lm
Luminous Flux @ Current/Temperature [Min]	35 lm	35 - 62 lm
Mounting Type	Surface Mount	Surface Mount
Package / Case	0606, 1616 Metric	0606, 1616 Metric
Size / Dimension [x]	1.6 mm	1.6 mm
Size / Dimension [x]	0.063 in	0.063 in
Size / Dimension [y]	0.063 in	0.063 in
Size / Dimension [y]	1.6 mm	1.6 mm
Supplier Device Package	SMD	0606, SMD
Thermal Resistance of Package [custom]	26 °C/W	26 °C/W
Viewing Angle	110 °	110 - 115 °
Voltage - Forward (Vf) (Typ)	3.1 V	3.1 V
Wavelength	528 nm	525 - 530 nm
Wavelength [Max]	535 nm	535 nm
Wavelength [Min]	520 nm	520 nm

XQAGRN Series

XLAMP XQA LIGHT EMITTING DIODE GREEN

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Lumens/Watt @ Current - Test	Package / Case	Wavelength	Wavelength [Min]	Wavelength [Max]	Current - Test	Current - Max [Max]	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature	Color	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Viewing Angle	Mounting Type	Supplier Device Package	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]	Thermal Resistance of Package [custom]
Cree LED XQAGRN-00-0000-000000401	0.063 in	1.6 mm	0.063 in	1.6 mm	101 lm/W	0606, 1616 Metric	528 nm	520 nm	535 nm	175 mA	300 mA	3.1 V	55 lm	Green	0.068 "	1.73 mm	115 °	Surface Mount	0606
Cree LED XQAGRN-00-0000-000000Z01	0.063 in	1.6 mm	0.063 in	1.6 mm	64 lm/W	0606, 1616 Metric	528 nm	520 nm	535 nm	175 mA	250 mA	3.1 V	38 lm	Green	0.068 "	1.73 mm	110 °	Surface Mount	SMD	35 lm	40 lm	26 °C/W
Cree LED XQAGRN-00-0000-000000402	0.063 in	1.6 mm	0.063 in	1.6 mm	101 lm/W	0606, 1616 Metric	525 nm			175 mA	300 mA	3.1 V	55 lm	Green	0.068 "	1.73 mm	115 °	Surface Mount	0606
Cree LED XQAGRN-00-0000-000000502	0.063 in	1.6 mm	0.063 in	1.6 mm	111 lm/W	0606, 1616 Metric	525 nm			175 mA	300 mA	3.1 V	60 lm	Green	0.068 "	1.73 mm	115 °	Surface Mount	0606
Cree LED XQAGRN-00-0000-000000603	0.063 in	1.6 mm	0.063 in	1.6 mm	120 lm/W	0606, 1616 Metric	530 nm			175 mA	300 mA	3.1 V	65 lm	Green	0.068 "	1.73 mm	115 °	Surface Mount	0606	62 lm	67 lm
Cree LED XQAGRN-00-0000-000000503	0.063 in	1.6 mm	0.063 in	1.6 mm	111 lm/W	0606, 1616 Metric	530 nm			175 mA	300 mA	3.1 V	60 lm	Green	0.068 "	1.73 mm	115 °	Surface Mount	0606
Cree LED XQAGRN-00-0000-000000501	0.063 in	1.6 mm	0.063 in	1.6 mm	111 lm/W	0606, 1616 Metric	528 nm	520 nm	535 nm	175 mA	300 mA	3.1 V	60 lm	Green	0.068 "	1.73 mm	115 °	Surface Mount	0606
Cree LED XQAGRN-00-0000-000000601	0.063 in	1.6 mm	0.063 in	1.6 mm	120 lm/W	0606, 1616 Metric	528 nm	520 nm	535 nm	175 mA	300 mA	3.1 V	65 lm	Green	0.068 "	1.73 mm	115 °	Surface Mount	0606	62 lm	67 lm
Cree LED XQAGRN-00-0000-000000402	0.063 in	1.6 mm	0.063 in	1.6 mm	101 lm/W	0606, 1616 Metric	525 nm			175 mA	300 mA	3.1 V	55 lm	Green	0.068 "	1.73 mm	115 °	Surface Mount	0606
Cree LED XQAGRN-00-0000-000000Z02	0.063 in	1.6 mm	0.063 in	1.6 mm	64 lm/W	0606, 1616 Metric	525 nm			175 mA	250 mA	3.1 V	38 lm	Green	0.068 "	1.73 mm	110 °	Surface Mount	SMD	35 lm	40 lm	26 °C/W
