FJ9SCSC-09M

Active

UNC Group

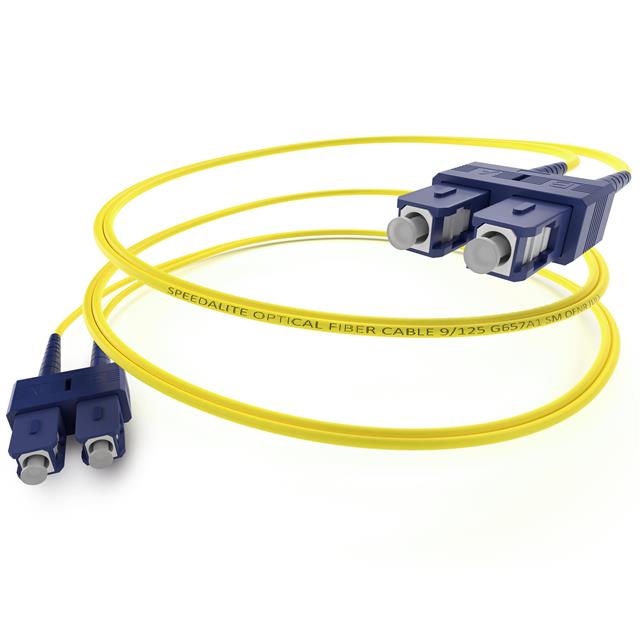

SINGLEMODE SC TO SC FIBER 9M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FJ9SCSC-09M

Active

UNC Group

SINGLEMODE SC TO SC FIBER 9M

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FJ9SCSC-09M	FJ9SCSC Series

1st Connector	SC Duplex	SC Duplex
2nd Connector	SC Duplex	SC Duplex
Bend Radius [radius]	10 mm	10 mm
Cable Diameter [diameter]	2 mm	2 mm
Cable Diameter [diameter]	0.08 in	0.08 in
Cable Type	Twin Zip, Bend Insensitive Fiber (BIF)	Twin Zip, Bend Insensitive Fiber (BIF)
Color - Cable	Yellow	Yellow
Color - Connectors	Blue	Blue
Features	Dust Cap, Zipcord, Riser	Dust Cap, Zipcord, Riser
Fiber Type	9/125	9/125
Insertion Loss	0.2 dB	0.2 dB
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Length - Overall	-	30 m
Length - Overall [x]	29.5 '	13.1 - 98.4 ft
Length - Overall [x]	9 m	4 - 25 m
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-20 C	-20 C
Ratings	OFNR	OFNR
Return Loss	55 dB	55 dB
Type	Singlemode, OS2, Duplex	Singlemode, OS2, Duplex

FJ9SCSC Series

SINGLEMODE SC TO SC FIBER 30M

Part	Insertion Loss	Operating Temperature [Min]	Operating Temperature [Max]	Fiber Type	Return Loss	Jacket (Insulation) Material	1st Connector	Color - Cable	Features	Color - Connectors	Length - Overall [x]	Length - Overall	Bend Radius [radius]	Ratings	Cable Type	Cable Diameter [diameter]	Cable Diameter [diameter]	2nd Connector	Type	Length - Overall [x]
UNC Group FJ9SCSC-30M	0.2 dB	-20 C	60 °C	9/125	55 dB	Poly-Vinyl Chloride (PVC)	SC Duplex	Yellow	Dust Cap, Riser, Zipcord	Blue	98.4 ft	30 m	10 mm	OFNR	Twin Zip, Bend Insensitive Fiber (BIF)	2 mm	0.08 in	SC Duplex	Duplex, OS2, Singlemode
UNC Group FJ9SCSC-09M	0.2 dB	-20 C	60 °C	9/125	55 dB	Poly-Vinyl Chloride (PVC)	SC Duplex	Yellow	Dust Cap, Riser, Zipcord	Blue	29.5 '		10 mm	OFNR	Twin Zip, Bend Insensitive Fiber (BIF)	2 mm	0.08 in	SC Duplex	Duplex, OS2, Singlemode	9 m
UNC Group FJ9SCSC-25M	0.2 dB	-20 C	60 °C	9/125	55 dB	Poly-Vinyl Chloride (PVC)	SC Duplex	Yellow	Dust Cap, Riser, Zipcord	Blue	82 ft		10 mm	OFNR	Twin Zip, Bend Insensitive Fiber (BIF)	2 mm	0.08 in	SC Duplex	Duplex, OS2, Singlemode	25 m
UNC Group FJ9SCSC-12M	0.2 dB	-20 C	60 °C	9/125	55 dB	Poly-Vinyl Chloride (PVC)	SC Duplex	Yellow	Dust Cap, Riser, Zipcord	Blue	39.4 ft		10 mm	OFNR	Twin Zip, Bend Insensitive Fiber (BIF)	2 mm	0.08 in	SC Duplex	Duplex, OS2, Singlemode	12 m
UNC Group FJ9SCSC-15M	0.2 dB	-20 C	60 °C	9/125	55 dB	Poly-Vinyl Chloride (PVC)	SC Duplex	Yellow	Dust Cap, Riser, Zipcord	Blue	49.2 '		10 mm	OFNR	Twin Zip, Bend Insensitive Fiber (BIF)	2 mm	0.08 in	SC Duplex	Duplex, OS2, Singlemode	15 m
UNC Group FJ9SCSC-04M	0.2 dB	-20 C	60 °C	9/125	55 dB	Poly-Vinyl Chloride (PVC)	SC Duplex	Yellow	Dust Cap, Riser, Zipcord	Blue	13.1 '		10 mm	OFNR	Twin Zip, Bend Insensitive Fiber (BIF)	2 mm	0.08 in	SC Duplex	Duplex, OS2, Singlemode	4 m
UNC Group FJ9SCSC-06M	0.2 dB	-20 C	60 °C	9/125	55 dB	Poly-Vinyl Chloride (PVC)	SC Duplex	Yellow	Dust Cap, Riser, Zipcord	Blue	19.7 ft		10 mm	OFNR	Twin Zip, Bend Insensitive Fiber (BIF)	2 mm	0.08 in	SC Duplex	Duplex, OS2, Singlemode	6 m
UNC Group FJ9SCSC-20M	0.2 dB	-20 C	60 °C	9/125	55 dB	Poly-Vinyl Chloride (PVC)	SC Duplex	Yellow	Dust Cap, Riser, Zipcord	Blue	65.6 ft		10 mm	OFNR	Twin Zip, Bend Insensitive Fiber (BIF)	2 mm	0.08 in	SC Duplex	Duplex, OS2, Singlemode	20 m
UNC Group FJ9SCSC-08M	0.2 dB	-20 C	60 °C	9/125	55 dB	Poly-Vinyl Chloride (PVC)	SC Duplex	Yellow	Dust Cap, Riser, Zipcord	Blue	26.2 ft		10 mm	OFNR	Twin Zip, Bend Insensitive Fiber (BIF)	2 mm	0.08 in	SC Duplex	Duplex, OS2, Singlemode	8 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.15
		20	$ 10.93
		60	$ 10.71
		100	$ 10.48
		200	$ 10.26

Description

General part information

FJ9SCSC Series

Cable Fiber Optic SC Duplex To SC Duplex 9/125 29.5' (9.0m)
