AK09916C

Obsolete

Asahi Kasei Microdevices/AKM

SENSOR HALL EFFECT I2C 5WLCSP

Search across all available documentation for this part.

Obsolete

Asahi Kasei Microdevices/AKM

SENSOR HALL EFFECT I2C 5WLCSP

Technical Specifications

Parameters and characteristics for this part

SENSOR HALL EFFECT I2C 5WLCSP

Part	Axis [z]	Axis [y]	Axis [x]	Current - Supply (Max) [Max]	Mounting Type	Resolution	Technology	Output Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Supplier Device Package [x]	Supplier Device Package	Supplier Device Package [y]	Sensing Range [Min]	Sensing Range [Max]
Asahi Kasei Microdevices/AKM AK09916C	Z	Y	X	4 mA	Surface Mount	16 b	Hall Effect	I2C	-30 ░C	85 °C	1.95 V	1.65 V	5-UFBGA, WLCSP	1.18	5-WLCSP	0.78	4.7 mT	5.2 mT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

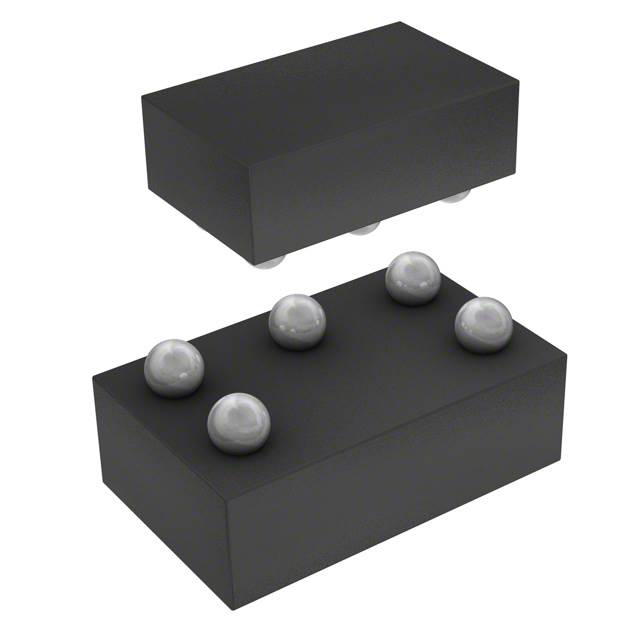

Hall Effect Sensor X, Y, Z Axis 5-WLCSP (1.18x0.78)

Technical documentation and resources

No documents available
